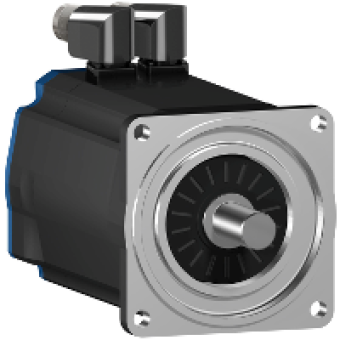

BSH1004P11A2A - AC servo motor BSH - 9.31 N.m - 1500 rpm - keyed shaft - without brake - IP50, Schneider Electric
- Product Code: BSH1004P11A2A
- Brand: Schneider Electric
- Availability: To be confirmed
- € 834.96 Ex Tax:
MAIN CHARACTERISTICS
product or component type
SERVO MOTOR
device short name
BSH
maximum mechanical speed
6000 RPM
continuous stall torque
8 N.M FOR LXM32.D30N4 10 A AT 400 V THREE PHASE
peak stall torque
37.9 N.M FOR LXM32.D30N4 10 A AT 400 V THREE PHASE
nominal output power
2600 W FOR LXM32.D30N4 10 A AT 480 V THREE PHASE
nominal torque
8.3 N.M FOR LXM32.D30N4 10 A AT 400 V THREE PHASE
nominal speed
2500 RPM FOR LXM32.D30N4 10 A AT 400 V THREE PHASE
product compatibility
LXM05AD42M3X AT 200...240 V THREE PHASE
shaft end
KEYED
IP degree of protection
IP50 STANDARD
speed feedback resolution
131072 POINTS TURN
holding brake
WITHOUT
mounting support
INTERNATIONAL STANDARD FLANGE
electrical connection
ROTATABLE RIGHT-ANGLED CONNS
COMPLEMETARY CHARACTERISTICS
range compatibility
LEXIUM 05
supply voltage max
480 V
network number of phases
THREE PHASE
continuous stall current
6.2 A
maximum continuous power
3.64 W
maximum current Irms
34.8 A FOR LXM15LD28M3
maximum permanent current
32.3 A
switching frequency
8 KHZ
second shaft
WITHOUT SECOND SHAFT END
shaft diameter
24 MM
shaft length
50 MM
key width
40 MM
feedback type
SINGLE TURN SINCOS HIPERFACE
motor flange size
100 MM
number of motor stacks
4
torque constant
1.62 N.MA AT 120 DC
back emf constant
103 VKRPM AT 120 DC
number of motor poles
8
rotor inertia
4.22 KG.CM
stator resistance
1.81 OHM AT 20 DC
stator inductance
11.8 MH AT 20 DC
stator electrical time constant
6.52 MS AT 20 DC
maximum radial force Fr
1070 N AT 1000 RPM
maximum axial force Fa
0.2 X FR
type of cooling
NATURAL CONVECTION
length
276.5 MM
centring collar diameter
95 MM
centring collar depth
3.5 MM
number of mounting holes
4
mounting holes diameter
9 MM
circle diameter of the mounting holes
115 MM
product weight
9.5 KG
sizing reference
BSH1004P
network number of phases
3
accuracy error [angular]
1.4
coefficient 1_1
-0.000700000000009014 N.MRPM
coefficient 1_2
1.7128846026567E-17 N.MRPM
coefficient 1_3
-1.1997121233E-20 N.MRPM3
coefficient 1_4
3.825509E-24 N.MRPM4
coefficient 1_5
-5.64E-28 N.MRPM5
coefficient 1_6
0 N.MRPM6
saturation coefficient 1
-2.573555055787E-18
saturation coefficient 2
-0.0103422649636168
saturation coefficient 3
2.01283635648E-19
temperature copper hot
120 C
temperature magnet hot
100 C
temperature magnet rt
20 C
motor voltage drop coefficient
1
