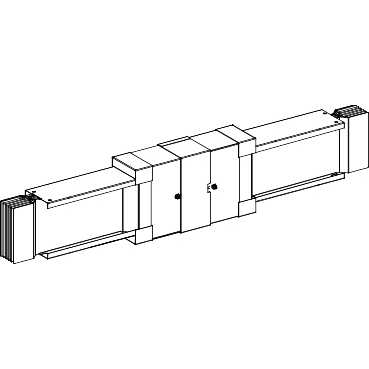

KTA0800DB710 - Canalis - Al straight expansion unit - 800A - 3L+N+PER, Schneider Electric
- Product Code: KTA0800DB710
- Brand: Schneider Electric
- Availability: To be confirmed
- € 1,112.52 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
product name
KT
product or component type
EXPANSION UNIT
busbar description
FLEXIBLE BAR
device short name
KTA
device application
FEEDER LENGTH
material
ALUMINIUM
[Ie] rated operational current
800 A AT 35 DC
polarity
3L + N + PER
number of tap-off outlets
0
length
1000 MM
provided equipment
TRUNKING UNIT
COMPLEMETARY CHARACTERISTICS
housing material
POLYESTER FILM
contacts material
COPPER
[Ue] rated operational voltage
1000 V
network frequency
50 60 HZ
[Ui] rated insulation voltage
1000 V
[Icw] rated short-time withstand current
35 KA
[Ipk] rated peak withstand current
73 KA
radiated magnetic field
0.4 T
thermal stress limit
1225 A.S
THDI
0...15 %, maximum load current: 800 A
voltage drop
with cos Æ=1, 0.0083 V at 50 Hz with 1A for 100 m long
linear resistance
L : R1 35 °C= 0.096 mΩ/m at Inc and 50 Hz
mounting mode
BY HOOK
mounting support
PENDANT
installation direction
HORIZONTAL
horizontal distance
30 M
neutral position
RIGHT
earth conductor
REINFORCED
standards
IEC 61439-1
dimension type
FIX
width
140 MM
height
74 MM
colour
RAL 9001 : white
product weight
15 KG
linear load
15 KGM
