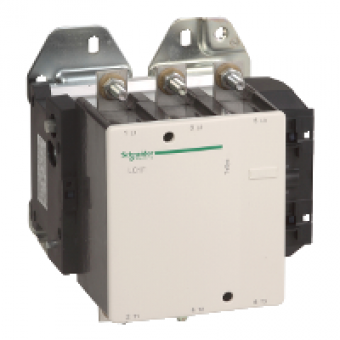

LC1F400E7 - TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 400 A - coil 48 V AC, Schneider Electric
- Product Code: LC1F400E7
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product name
TESYS F
product or component type
CONTACTOR
device short name
LC1F
contactor application
MOTOR CONTROL
motor power kW
75 KW AT 400 V AC 5060 HZ AC-4
control circuit type
AC 40..400 HZ
[Uc] control circuit voltage
48 V AC 40..400 HZ
[Uimp] rated impulse withstand voltage
8 KV
overvoltage category
III
[Ith] conventional free air thermal current
500 A AT <= 40 DC
rated breaking capacity
3200 A CONFORMING TO IEC 60947-4-1
[Icw] rated short-time withstand current
3600 A <= 40 DC 10 S
associated fuse rating
400 A AM AT <= 440 V
average impedance
0.26 MOHM AT 50 HZ - ITH 500 A
[Ui] rated insulation voltage
1000 V CONFORMING TO IEC 60947-4-1
power dissipation per pole
65 W AC-1
mounting support
PLATE
standards
EN 60947-1
product certifications
ABS
connections - terminals
control circuit : screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: flexible - without cable end
tightening torque
control circuit : 1.2 N.m
operating time
40..65 MS CLOSING
mechanical durability
10 MCYCLES
operating rate
2400 CYCH AT <= 55 DC
COMPLEMETARY CHARACTERISTICS
utilisation category
AC-1
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
<= 1000 V AC 5060 HZ
[Ie] rated operational current
500 A <= 40 C AT <= 440 V AC AC-1
control circuit voltage limits
0.85...1.1 UC AT 55 C OPERATIONAL 40...400 HZ
inrush power in VA
1075 VA AT 20 C COS 0.9 40...400 HZ
hold-in power consumption in VA
15 VA AT 20 C COS 0.9 40...400 HZ
heat dissipation
14 W
compatibility code
LC1F
motor power range
110...220 KW 480...500 V 3 PHASES
motor starter type
DIRECT ON LINE CONTACTOR
contactor coil voltage
48 V AC STANDARD
