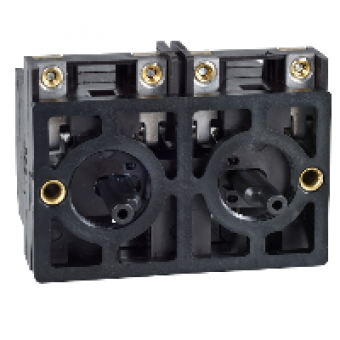

XESD1291 - spring return contact block - 2 NO+ 1 OC - front mounting 40 mm centres, Schneider Electric
- Product Code: XESD1291
- Brand: Schneider Electric
- Availability: To be confirmed
- € 76.97 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XAC
product or component type
CONTACT BLOCK
component name
XESD
electrical circuit type
POWER CIRCUIT
contact block application
2-SPEED
contact block type
DOUBLE
type of operator
2 SPRING RETURN
product compatibility
XACB
mechanical interlocking
WITH
contacts type and composition
2 NO + 1 C O
poles description
2-POLE
mounting of block
FRONT MOUNTING
contact operation
SNAP ACTION
COMPLEMETARY CHARACTERISTICS
connections - terminals
SCREW CLAMP TERMINALS CONNECTION CAPACITY 1 X 2.5 MM WITH OR WITHOUT CABLE END
horizontal fixing centres
40 MM
mechanical durability
1000000 CYCLES
[Ithe] conventional enclosed thermal current
12 A
[Ui] rated insulation voltage
600 V CONFORMING TO CSA
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-1
operating force
17 N
short-circuit protection
<= 10 A FUSE PROTECTION BY CARTRIDGE FUSE TYPE AM
rated operational power in W
2200 W AC-3 AT 240 V CONFORMING TO IEC 60947-3 APPENDIX A
rated power in hp
2 HP AT 240 V CSA CERTIFIED
electrical durability
300000 CYCLES AC-3 2200 W AT 240 V OPERATING RATE = 10 CYCMN LOAD FACTOR = 0.4 CONFORMING TO IEC 60947-3 APPENDIX A
terminals description ISO n°1
13-14NO
terminals description ISO n°2
33-34NO
terminal identifier
11-12NC
product weight
0.19 KG
