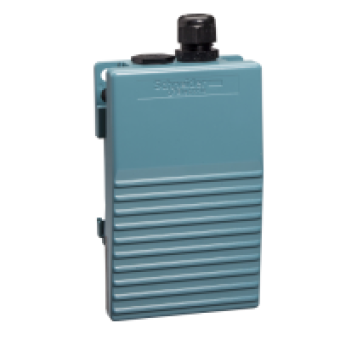

XPEM110EX - foot switch XPE-M - w/o cover - metal - blue - 1NC+1NO - protection against dust, Schneider Electric
- Product Code: XPEM110EX
- Brand: Schneider Electric
- Availability: To be confirmed
- € 113.77 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XPE
product or component type
FOOT SWITCH
material
METAL
foot switch type
SINGLE FOOT SWITCH
device short name
XPEM
protective cover
WITHOUT
trigger mechanism
WITHOUT
contact operation
1 STEP
contacts type and composition
1 NC + 1 NO
colour
BLUE
COMPLEMETARY CHARACTERISTICS
positive opening
WITH CONFORMING TO ENIEC 60947-5-1 APPENDIX K
connections - terminals
SCREW CLAMP TERMINAL CLAMPING CAPACITY <= 1 X 2.5 MM WITH OR WITHOUT CABLE END
cable entry
2 TAPPED ENTRIES FOR PG 16
marking
II2 D-EX TD A21 IP65 T85DC
mechanical durability
5000000 CYCLES
[Ie] rated operational current
3 A at 240 V AC-15, A300
[Ui] rated insulation voltage
300 V CONFORMING TO UL 508
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO ENIEC 60947-1
resistance across terminals
<= 0.025 MOHM CONFORMING TO IEC 60255-7 CATEGORY 3
short-circuit protection
10 A CARTRIDGE FUSE TYPE GG CONFORMING TO ENIEC 60947-5-1
width
104 MM
depth
172 MM
height
59 MM
compatibility code
XPEM
