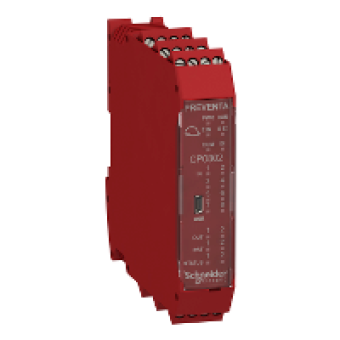

XPSMCMCP0802 - Controller with 8 inputs 2 outputs monitors expansion modules with screw term, Schneider Electric
- Product Code: XPSMCMCP0802
- Brand: Schneider Electric
- Availability: To be confirmed
- € 255.39 Ex Tax:
MAIN CHARACTERISTICS
range of product
PREVENTA SAFETY AUTOMATION
product or component type
SAFETY CONTROLLER CPU
device short name
XPSMCM
electrical connection
SCREW TERMINAL
[Us] rated supply voltage
24 V (- 20...20 %) DC
number of inputs
8 DIGITAL FOR INPUT CONNECTION
number of outputs
2 safety outputs OSSD for contactor/drive connection
discrete input voltage
24 V
discrete output current
400 mA
discrete input current
400 MA
discrete input type
SAFETY INPUT
discrete output type
PNP
function of module
emergency stop conforming to EN/ISO 13850
COMPLEMETARY CHARACTERISTICS
synchronisation time between inputs
< 0.5 MS
power dissipation in W
3 W
number of I/O expansion module
14 EXPANDABLE UP TO 128 INPUT
integrated connection type
USB 2.0 PORT
data storage equipment
SD card (optional)
inductive load
30 MH
load capacitance
0.82 F
safety level
can reach category 4 conforming to EN/ISO 13849-1
quality labels
CE
local signalling
1 LED green with PWR marking for power ON
connections - terminals
2-wire captive screw terminals, removable terminal block
cable cross section
(0.2...1.5 mm² - AWG 24...AWG 16) flexible cable without cable end
mounting support
omega 35 mm DIN rail conforming to EN 50022
depth
114.5 MM
height
99 MM
width
22.5 MM
product weight
0.25 KG
