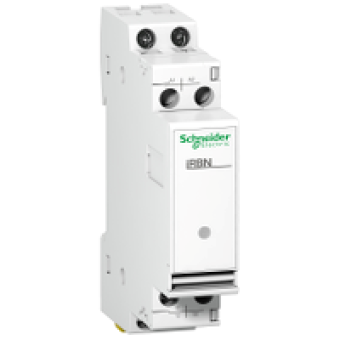

A9A15393 - low level interface relay iRBN - 5mA/5VAC-DC - 2A/250VCA - 230VAC, Schneider Electric
- Product Code: A9A15393
- Brand: Schneider Electric
- Availability: To be confirmed
- € 35.02 Ex Tax:
MAIN CHARACTERISTICS
device application
LOW LEVEL INTERFACE RELAY
function available
ACTN LOW-APRG CCTS RCVNG LV
range
ACTI 9
product name
ACTI 9 IRBN
product or component type
RELAY
device short name
IRBN
signal contacts composition
1 C O
[Uc] control circuit voltage
230 V AC 5060 HZ
COMPLEMETARY CHARACTERISTICS
[Ie] rated operational current
2 A AC 250 V
[Ui] rated insulation voltage
4000 V
local signalling
LED green power ON
supply holding power
2.5 VA
supply inrush power
5 VA
mounting mode
FIXED
mounting support
35 MM SYMMETRICAL DIN RAIL
9 mm pitches
2
electrical durability
100000 CYCLES
connections - terminals
TUNNEL TYPE TERMINALS
market segment
RESIDENTIAL
compatibility code
IRBN
