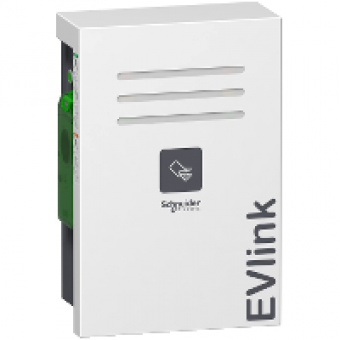

EVW2S22P44R - EVlink PARKING Wall Mounted 22KW 2xT2 With Shutter RFID EV CHARGING STATION, Schneider Electric
- Product Code: EVW2S22P44R
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range
EVLINK
product name
EVLINK PARKING
product or component type
CHARGING STATION
device short name
EVW2
poles description
3P + N for power circuit
mounting mode
WALL-MOUNTED
offer type
STANDARD
rated supply voltage
230 V AC 50/60 Hz control circuit
earthing system
IT
socket outlet type
2 X T2S
socket-outlet number
2
socket-outlet type
RIGHT SIDE T2 WITH SHUTTER SILVER PLATED CONTACTS
supply current
32 A FOR T2 WITH SHUTTER
Max power
22 KW FOR T2 WITH SHUTTER
access control system
BADGE RFID UNDER ISO IEC 14443 TEST REQUIRED
COMPLEMETARY CHARACTERISTICS
control type
2 RED PUSH-BUTTON FUNCTION STOP
local signalling
2 GREEN LED FLASHING ON SIDE DEVICE FUNCTION ON CHARGE
communication port protocol
OCPP 1.5
Configuration /Architecture
STANDALONE
Operation and maintenance
LOAD MANAGEMENT
web server
EMBEDDED
Ethernet service
CONFIGURATION VIA WEB SERVER
standards
IEC 61851 1
product certifications
CE
height
620 MM
width
413 MM
depth
256 MM
product weight
33 KG
colour
WHITE RAL 9003 ON FRONT DEVICE
