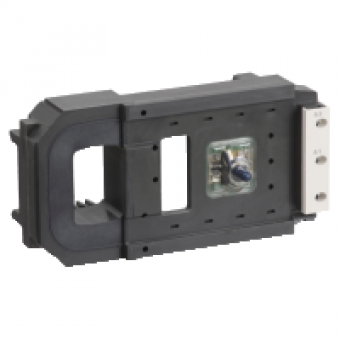

LX9FL931 - TeSys F - specific contactor coil - 220 V DC low consumption, Schneider Electric
- Product Code: LX9FL931
- Brand: Schneider Electric
- Availability: To be confirmed
- € 268.37 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product or component type
SPECIFIC CONTACTOR COIL
device short name
LX9FL
range compatibility
TESYS F LC1F CONTACTOR
control circuit type
DC LOW CONSUMPTION
[Uc] control circuit voltage
220..240 V DC
average resistance
64.5 OHM INRUSH AT 20 DC
inductance of closed circuit
3.6 H
product compatibility
LC1F630
operating time
60 MS OPENING
mechanical durability
5 MCYCLES
operating rate
1800 CYCH AT <= 70 DC
COMPLEMETARY CHARACTERISTICS
coil technology
W O BUILT-IN SPSR MODULE
control circuit voltage limits
0.85...1.1 UC AT 55 C OPERATIONAL
inrush power in W
733 W AT 20 DC
hold-in power consumption in W
48 W AT 20 DC
heat dissipation
22.8..27.8 W
The Schneider Electric LX9FL931 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
