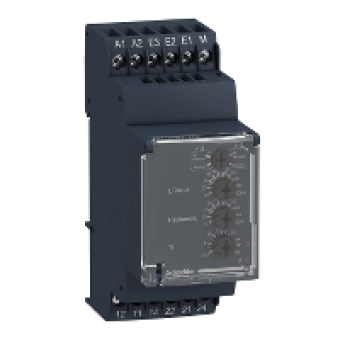

RM35UA13MW - multifunction voltage control relay RM35-U - range 15..600 V, Schneider Electric
- Product Code: RM35UA13MW
- Brand: Schneider Electric
- Availability: To be confirmed
- € 51.65 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO CONTROL
product or component type
MODULAR MSREMENT + CTRL RELAYS
relay type
MULTIFCT VOLTAGE CONTROL RELAY
relay name
RM35UA
relay monitored parameters
OVERVLTG OR UNDERVLTG DTTION
time delay
ADJUSTABLE 0.3...30 S 0 + 10 ON CROSSING THE THRESHOLD
switching capacity in VA
1250 VA
minimum switching current
10 MA AT 5 V DC
maximum switching current
5 A ACDC
power consumption in VA
0...3.5 VA AC
measurement range
15..600 V VOLTAGE
utilisation category
AC-12 CONFORMING TO IEC 60947-5-1
COMPLEMETARY CHARACTERISTICS
reset time
1500 MS FOR TIME DELAY
maximum switching voltage
250 V ACDC
[Us] rated supply voltage
24...240 V ACDC 5060 HZ +- 10
supply voltage limits
20.4..264 V ACDC
power consumption in W
<= 0.6 W DC
immunity to microbreaks
10 MS
control circuit frequency
40..70 HZ + - 10 PT
resistance across terminals
150 MOHM E1-M TERMINALS
output contacts
2 OC
nominal output current
5 A
measuring cycle
<= 30 MS MEASUREMENT CYCLE AS TRUE RMS VALUE
hysteresis
5..50 OF THRESHOLD SETTING
delay at power up
<= 600 MS
measurement accuracy
+ -10 PT OF THE FULL SCALE VL
repeat accuracy
+- 0.5 FOR INPUT AND MEASUREMENT CIRCUIT
measurement error
+- 0.05 C WITH TEMPERATURE VARIATION
polarity
NON REVERSABLE POL ON DC SPLY
sensitivity scale
15..150 V E1-M TERMINALS
threshold setting
10..100 PT
quality labels
CE
overvoltage category
III CONFORMING TO IEC 60664-1
insulation resistance
> 500 MOHM AT 500 V DC BETWEEN SUPPLY AND RELAY OUTPUT CONFORMING TO IEC 60255-5
[Ui] rated insulation voltage
250 V CONFORMING TO IEC 60664-1
operating voltage tolerance
- 15 PT + 10 PT UN
operating position
ANY POSITION WITHOUT DERATING
connections - terminals
screw terminals 1 x 0.5...1 x 4 mm² - AWG 20...AWG 11, solid cable without cable end
tightening torque
0.6...1 N.M CONFORMING TO IEC 60947-1
housing material
SELF-EXTINGUISHING PLASTIC
local signalling
LED GREEN FOR POWER ON
mounting support
35 MM SYMMETRICAL DIN RAIL CONFORMING TO ENIEC 60715
electrical durability
100000 CYCLES
mechanical durability
<= 30000000 CYCLES
operating rate
<= 360 OPERATIONSHOUR UNDER FULL LOAD
safety reliability data
MTTFD = 308.2 YEARS
width
35 MM
product weight
0.08 KG
compatibility code
RM3
