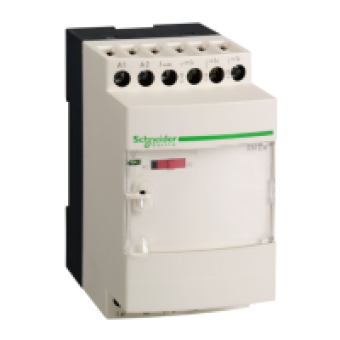

RMCA61BD - Isoled Analog Converter - 0..5 A - for Zelio Analog, Schneider Electric
- Product Code: RMCA61BD
- Brand: Schneider Electric
- Availability: To be confirmed
- € 118.37 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO ANALOG
product or component type
VOLTAGE CURRENT CONVERTER
analogue input type
CURRENT 0..1.5 A ACDC 5060 HZ
analogue output type
CURRENT 0...20 MA <= 500 OHM BY CABLING
COMPLEMETARY CHARACTERISTICS
protection type
OVERVLTG PROT ON O + - 30 V
abnormal analogue output voltage
-15...0 V WHEN NO INPUT OR INPUT WIRE BROKEN
abnormal analogue output current
0...-30 MA OUTPUT SELECTED 0...20 MA WHEN NO INPUT OR INPUT WIRE BROKEN
[Us] rated supply voltage
24 V DC +- 20 ISOLATED
current consumption
<= 70 MA FOR VOLTAGE OUTPUT
local signalling
LED GREEN POWER ON
measurement error
+- 10 OF FULL SCALE AT 20 C ELECTROMAGNETIC INTERFERENCE OF 10 VM
repeat accuracy
+- 0.2 FULL SCALE AT 20 DC
temperature coefficient
1000 PPMDC RANGE 0...5 A
clamping connection capacity
1 X 2.5 MM2
tightening torque
0.6...1.1 N.M
marking
CE
surge withstand
0.5 KV FOR 1.250 S CONFORMING TO IEC 61000-4-5
[Ui] rated insulation voltage
2 KV
fixing mode
BY SCREWS MOUNTING PLATE
safety reliability data
MTTFD = 23.9 YEARS
product weight
0.15 KG
