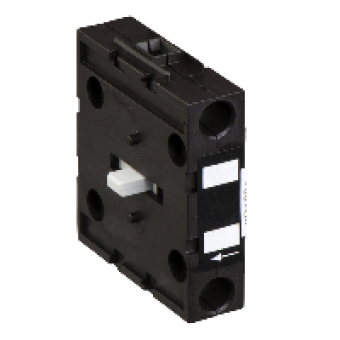

VZN12 - TeSys Mini-VARIO - additional pole - 12 A - for VN-12, Schneider Electric
- Product Code: VZN12
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
device short name
VZN
product or component type
ADDITIONAL POLE
performance level
STANDARD
poles description
1P
contacts type and composition
1 NO
product compatibility
VN12
network type
AC
network frequency
50 60 HZ
mounting location
LEFT
COMPLEMETARY CHARACTERISTICS
range compatibility
TESYS TESYS VARIO VCFN SWITCH DISCONNECTOR
[Ue] rated operational voltage
690 V AC 5060 HZ
[Uimp] rated impulse withstand voltage
6 KV
[Ith] conventional free air thermal current
12 A
[Ithe] conventional enclosed thermal current
10 A
mechanical durability
50000 CYCLES
electrical durability
30000 cycles DC-1...5
suitability for isolation
YES
connections - terminals
power circuit : screw clamp terminals cable 4 mm² - cable stiffness: flexible - with cable end cable end
tightening torque
power circuit : 0.7 N.m - on screw clamp terminals
height
45.5 MM
width
12 MM
depth
39 MM
product weight
0.02 KG
compatibility code
MAIN POLE MODULE
