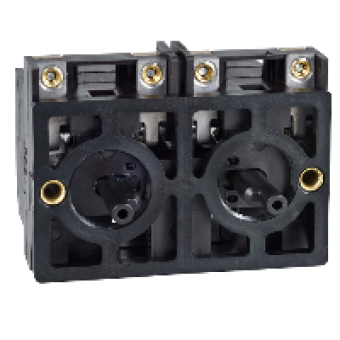

XESD1281 - PENDANT STATION CONTACT 600VAC 10A XE, Schneider Electric
- Product Code: XESD1281
- Brand: Schneider Electric
- Availability: To be confirmed
- € 40.19 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XAC
product or component type
CONTACT BLOCK
component name
XESD
electrical circuit type
CONTROL CIRCUIT
contact block application
2-SPEED
contact block type
DOUBLE
type of operator
2 SPRING RETURN
product compatibility
XACB
mechanical interlocking
WITH
contacts type and composition
1 C O + 1 NO
mounting of block
FRONT MOUNTING
contact operation
SNAP ACTION
COMPLEMETARY CHARACTERISTICS
connections - terminals
SCREW CLAMP TERMINALS CONNECTION CAPACITY 1 X 2.5 MM WITH OR WITHOUT CABLE END
mechanical durability
1000000 CYCLES
contact code designation
A300 AC-15 UE = 240 V IE = 3 A CONFORMING TO IEC 60947-5-1 APPENDIX A
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
500 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-1
resistance across terminals
<= 25 MOHM
operating force
15 N
short-circuit protection
10 A FUSE PROTECTION BY CARTRIDGE FUSE TYPE GG
rated operational power in W
140 W DC-13 FOR 1000000 CYCLES OPERATING RATE = 60 CYCMN AT 24 V LOAD FACTOR = 0.5 INDUCTIVE LOAD CONFORMING TO IEC 60947-5-1 APPENDIX C
rated operational power in VA
100 VA AC-15 FOR 1000000 CYCLES OPERATING RATE = 60 CYCMN AT 48 V 5060 HZ LOAD FACTOR = 0.5 INDUCTIVE LOAD
terminals description ISO n°1
13-14-11-12OF
terminals description ISO n°2
23-24-21-22OF
terminal identifier
11-12NC
product weight
0.19 KG
