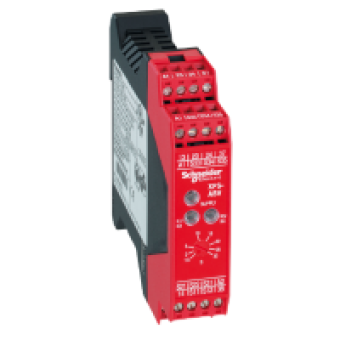

XPSABV1133P - module XPSABV - stop and switch monitoring - 24 V AC/DC, Schneider Electric
- Product Code: XPSABV1133P
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
PREVENTA SAFETY AUTOMATION
product or component type
PREVENTA SAFETY MODULE
safety module name
XPSABV
safety module application
F EMERGENCY STOP+SWITCH MNTRG
safety level
CAN REACH PL DCATEGORY 3 CONFORMING TO ENISO 13849-1 TIME DELAY SAFETY OUTPUTS
safety reliability data
MTTFD = 53 YEARS CONFORMING TO ENISO 13849-1 INSTANTANEOUS SAFETY OUTPUTS
connections - terminals
CAPTIVE SCREW CLAMP TERMINALS REMOVABLE TERMINAL BLOCK CLAMPING CAPACITY 1 X 0.2...1 X 2.5 MM SOLID CABLE WITHOUT CABLE END
output type
RELAY INSTANTANEOUS OPENING 2 NO VOLT-FREE
number of additional circuits
0
[Us] rated supply voltage
24 V DC - 15..10
COMPLEMETARY CHARACTERISTICS
synchronisation time between inputs
< 0.5 S
power consumption in W
<= 3 W DC
input protection type
INTERNAL ELECTRONIC
time delay range
1.5...30 S
[Uc] control circuit voltage
24 V DC
breaking capacity
B300 3600 VA AC-15 INRUSH
breaking capacity
1.5 A AT 24 V DC-13 TIME CONSTANT 50 MS FOR RELAY OUTPUT
output thermal current
6 A FOR INSTANTANEOUS AND TIME DELAY OUTPUTS
[Ith] conventional free air thermal current
12 A
associated fuse rating
6 A FUSE TYPE GG FOR INSTANTANEOUS AND TIME DELAY OUTPUTS CONFORMING TO ENIEC 60947-5-1 DIN VDE 0660 PART 200
minimum output current
10 MA FOR RELAY OUTPUT
minimum output voltage
17 V FOR RELAY OUTPUT
response time on input open
<= 200 MS
[Ui] rated insulation voltage
300 V (degree of pollution: 2) conforming to IEC 60947-5-1
[Uimp] rated impulse withstand voltage
4 kV overvoltage category III conforming to IEC 60947-5-1
local signalling
3 LEDS
mounting support
35 MM SYMMETRICAL DIN RAIL
product weight
0.28 KG
