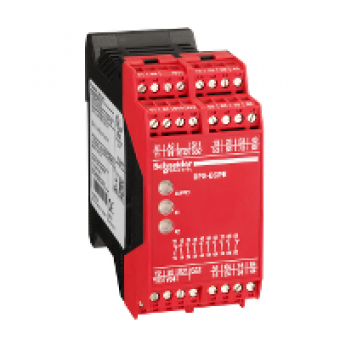

XPSECPE3910C - module XPSEC - increasing the number of safety contacts - 115..230 V AC DC, Schneider Electric
- Product Code: XPSECPE3910C
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
PREVENTA SAFETY AUTOMATION
product or component type
PREVENTA SAFETY MODULE
safety module name
XPSECPE
safety module application
INCREASING THE NB OF SFTY CTCT
function of module
INCREASING THE NB OF SFTY CTCT
safety level
CAN REACH PL ECATEGORY 4 CONFORMING TO ENISO 13849-1 CAN REACH THE MAXIMUM SAFETY LEVEL OF MODULE BASE
safety reliability data
MTTFD > 100 YEARS CONFORMING TO ENISO 13849-1
output type
RELAY 8 NO VOLT-FREE
[Us] rated supply voltage
115..230 V AC - 15..10
number of additional circuits
2 NC + 1 SOLID STATE OUTPUT
COMPLEMETARY CHARACTERISTICS
supply frequency
50 60 HZ
power consumption in VA
<= 6 VA
input protection type
INTERNAL ELECTRONIC
breaking capacity
B300 : holding 360 VA AC-15 for relay output
breaking capacity
3 A / 24 V - L/R = 50 ms, DC-13 for relay output
output thermal current
6 A PER RELAY FOR RELAY OUTPUT
[Ith] conventional free air thermal current
< 24 A FOR RELAY OUTPUT
associated fuse rating
6 A GG FOR RELAY OUTPUT CONFORMING TO ENIEC 60947-5-1 DIN VDE 0660 PART 200
minimum output current
10 MA FOR RELAY OUTPUT
minimum output voltage
5 V FOR RELAY OUTPUT
response time on input open
<= 10 MS
[Ui] rated insulation voltage
300 V DEGREE OF POLLUTION 2 CONFORMING TO ENIEC 60947-5-1 DIN VDE 0110 PARTS 1 2
[Uimp] rated impulse withstand voltage
4 KV OVERVOLTAGE CATEGORY III CONFORMING TO ENIEC 60947-5-1 DIN VDE 0110 PARTS 1 2
local signalling
3 LEDS
connections - terminals
SPRING TERMINALS REMOVABLE TERMINAL BLOCK CLAMPING CAPACITY 1 X 0.2...1 X 2.5 MM SOLID CABLE WITHOUT CABLE END
mounting support
35 MM SYMMETRICAL DIN RAIL
product weight
0.65 KG
