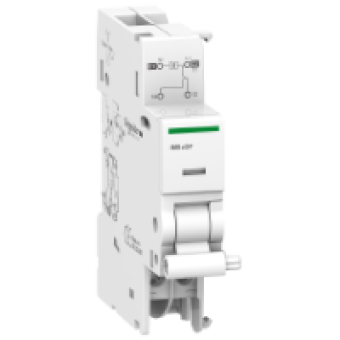

A9A26948 - voltage release - iMX+OF - tripping unit - 12..24 VAC, Schneider Electric
- Product Code: A9A26948
- Brand: Schneider Electric
- Availability: To be confirmed
- € 24.82 Ex Tax:
MAIN CHARACTERISTICS
range of product
ACTI 9
range of product
IC60
product or component type
SHT TRIP RELEASE W OC CONTACT
device short name
IMX+OF
signal contacts composition
1 C O
[Ie] rated operational current
AC-12 6 A AT 12 V AC - 50 HZ
[Uc] control circuit voltage
12 V AC 5060 HZ
9 mm pitches
2
product compatibility
IC60
COMPLEMETARY CHARACTERISTICS
range compatibility
ACTI 9 ACTI 9 IC65
local signalling
ACTION INDICATOR
mounting mode
CLIP-ON
mounting support
DIN RAIL
width
18 MM
colour
WHITE
connections - terminals
CLAMP TERMINAL 2 CABLES 2.5 MM FLEXIBLE WITH CABLE END CABLE END
tightening torque
1 N.M
market segment
RESIDENTIAL
