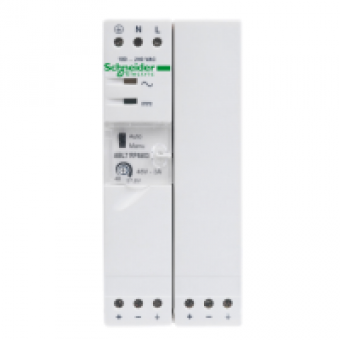

ABL7RP4803 - regulated SMPS - 1 or 2-phase - 100.240 V AC- 48 V - 2.5 A, Schneider Electric
- Product Code: ABL7RP4803
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
PHASEO
product or component type
POWER SUPPLY
power supply type
REGULATED SWITCH MODE
input voltage
100...240 V AC PHASE TO PHASE TERMINALS L1-L2
output voltage
48 V DC
rated power in W
120 W
input protection type
INTEGRATED FUSE NOT INCGBL
power supply output current
2.5 A
output protection type
AGAINST OVERLOAD PROTECTION TECHNOLOGY 1.1 X IN
ambient air temperature for operation
0...50 C WITHOUT
COMPLEMETARY CHARACTERISTICS
input voltage limits
100..250 V
network frequency
47..63 HZ
inrush current
<= 30 A
cos phi
0.98
efficiency
85
output voltage limits
100..120 PT ADJUSTABLE
power dissipation in W
25.4 W
current consumption
1 A AT 100 V
line and load regulation
+ -3 PT
holding time
>= 20 MS AT 100 V
connections - terminals
SCREW TYPE TERMINALS FOR INPUT CONNECTION CONNECTION CAPACITY 2 X 0.14...2 X 2.5 MM AWG 26...AWG 14
marking
CE
mounting support
35 X 15 MM SYM DIN RAIL
operating position
VERTICAL
operating altitude
2000 M
output coupling
PARALLEL
name of test
ELECTROSTATIC DISCHARGES CONFORMING TO ENIEC 61000-4-2
status LED
1 LED GREEN FOR OUTPUT VOLTAGE
depth
120 MM
height
120 MM
width
54 MM
product weight
1 KG
compatibility code
ABL7R
