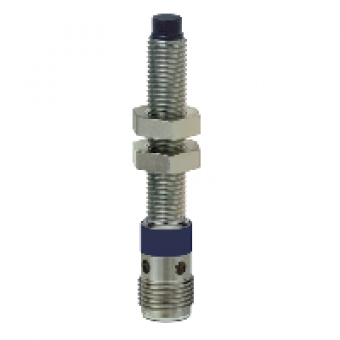

XS2M08PC410D - inductive sensor XS2 M8 - L61mm - stainless - Sn2.5mm - 12..24VDC - M12, Schneider Electric
- Product Code: XS2M08PC410D
- Brand: Schneider Electric
- Availability: To be confirmed
- € 21.51 Ex Tax:
MAIN CHARACTERISTICS
range of product
OSISENSE XS
series name
GENERAL PURPOSE
sensor type
INDUCTIVE PROXIMITY SENSOR
device application
NOT APPLICABLE
sensor name
XS2
sensor design
CYLINDRICAL M8
size
61 MM
body type
FIXED
detector flush mounting acceptance
NON FLUSH MOUNTABLE
material
STAINLESS STEEL
type of output signal
DISCRETE
wiring technique
4-WIRE
[Sn] nominal sensing distance
2.5 MM
discrete output function
1 NO + 1 NC
output circuit type
DC
discrete output type
PNP
electrical connection
4 PINS M12 MALE CONNECTOR
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
switching capacity in mA
<= 200 MA WITH OVERLOAD AND SHORT-CIRCUIT PROTECTION
IP degree of protection
IP67 CONFORMING TO IEC 60529
COMPLEMETARY CHARACTERISTICS
thread type
M8 X 1
detection face
FRONTAL
front material
PPS
enclosure material
STAINLESS STEEL 303
sensing range
> 0...2.5 MM
operating zone
0...2 MM
differential travel
1..15 PT OF SR
status LED
1 LED YELLOW FOR OUTPUT STATE
supply voltage limits
10..36 V DC
switching frequency
<= 5000 HZ
voltage drop
<= 2 V AT CLOSED STATE
current consumption
0..10 MA AT NO-LOAD
delay first up
<= 5 MS
delay response
<= 0.1 MS
delay recovery
<= 0.1 MS
marking
CE
threaded length
36 MM
height
18 MM
length
61 MM
product weight
0.025 KG
