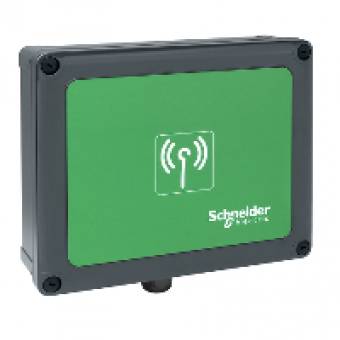

ZARB18W - 18 relay outputs wired connection – cable gland, Schneider Electric
- Product Code: ZARB18W
- Brand: Schneider Electric
- Availability: To be confirmed
- € 782.55 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY
product or component type
BASE STATION
device short name
ZARB
product specific application
HOISTING APPLICATIONS
COMPLEMETARY CHARACTERISTICS
cable entry
CABLE GLAND
material
PC POLYCARBONATE
[Us] rated supply voltage
24...240 V ACDC
provided equipment
INTERNAL ANTENNA
nominal output current
0.54 A at 48 V AC conforming to IEC 60947-5-1
number of relays
18
relay type
motion relay outputs (9 NO)
safety outputs
2 NC relay outputs
switching capacity in VA
5 VA DC
maximum switching current
6.8 mA
maximum switching voltage
240 V ACDC + 20
communication network type
wireless : Bluetooth low energy
transmission frequency
2.4 GHZ
maximum sensing distance
100 M IN FREE FIELD
response time
100 ms
number of channels
40
fixing mode
4 HOLES
electrical durability
100000 CYCLES
mechanical durability
1000000 CYCLES
number of alarms
6 PROGRAMMABLE ALARMS
number of inputs
12
service life
10 YR
width
280 MM
height
305 MM
depth
100 MM
product weight
1.45 KG
