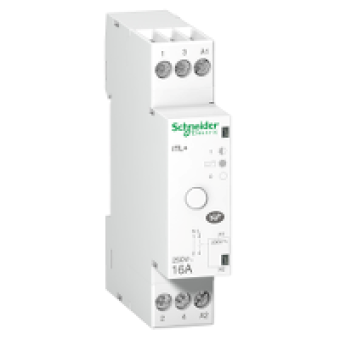

A9C15032 - impulse relay iTL+ - 1P+N - 1NO - 16A - coil 230 VAC 50Hz, Schneider Electric
- Product Code: A9C15032
- Brand: Schneider Electric
- Availability: To be confirmed
- € 42.56 Ex Tax:
MAIN CHARACTERISTICS
device application
STANDARD
range of product
ITL
range of product
ACTI 9
product name
ACTI 9 ITL+
product or component type
IMPULSE RELAY
device short name
ITL+
Poles
1P
neutral position
LEFT
pole contact composition
1 NO
[In] rated current
16 A
network type
AC
[Uc] control circuit voltage
230 V AC 50 HZ
COMPLEMETARY CHARACTERISTICS
network frequency
50 HZ
[Ue] rated operational voltage
230 V AC 50 HZ
control type
REMOTE AND MANUAL CTRL
control signal type
IMPULSE
switching frequency
6 SWITCHING OPERATION MINUTE
impulse duration
50 MS...1 S
remote control type
illuminated push-button 5 mA
local signalling
ON OFF INDICATION
mounting mode
CLIP-ON
mounting support
DIN RAIL
9 mm pitches
2
height
84 MM
width
18 MM
depth
60 MM
product weight
70 G
electrical durability
AC-21 5000000 CYCLES
connections - terminals
TUNNEL TYPE TERMINALS TOP OR BOTTOM 2 CABLE S 1.5 MM RIGID
wire stripping length
10 MM
tightening torque
1 N.M
product compatibility
NO AUXILIARY
market segment
RESIDENTIAL
compatibility code
ITL
