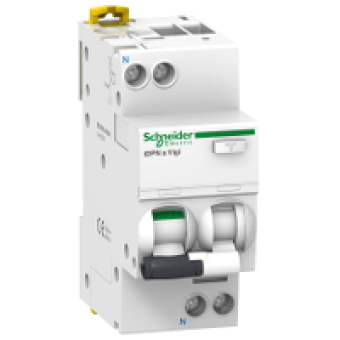

A9D34620 - Acti 9 iDPNa Vigi - RCBO - 1P+N - 20A - C Curve - 4500A - 30mA - type AC, Schneider Electric
- Product Code: A9D34620
- Brand: Schneider Electric
- Availability: To be confirmed
- € 20.06 Ex Tax:
MAIN CHARACTERISTICS
range of product
IDPN VIGI
range
ACTI 9
product name
ACTI 9 IDPN VIGI
product or component type
RES CRRT BRKER W OVRCRT PROT
device short name
IDPNA VIGI
device application
DISTRIBUTION
poles description
1P+N
number of protected poles
1
neutral position
LEFT
[In] rated current
20 A
network type
AC
trip unit technology
THERMAL-MAGNETIC
curve code
C
earth-leakage sensitivity
30 MA
earth-leakage protection time delay
INSTANTANEOUS
earth-leakage protection class
TYPE AC
breaking capacity
ICN 4500 A AT 220...240 V AC 50 HZ CONFORMING TO EN IEC 61009-2-1
suitability for isolation
YES CONFORMING TO ENIEC 60947-2
COMPLEMETARY CHARACTERISTICS
device location in system
OUTGOER
network frequency
50 HZ
[Ue] rated operational voltage
220..240 V AC 50 HZ
magnetic tripping limit
5...10 X IN
residual current tripping technology
VOLTAGE INDEPENDENT
[Ics] rated service breaking capacity
4500 A 100 X ICN AT 220...240 V AC 50 HZ CONFORMING TO EN IEC 61009-2-1
rated breaking and making capacity
IDM 4500 A AT 220...240 V AC 50 HZ CONFORMING TO EN IEC 61009-2-1
limitation class
3 CONFORMING TO ENIEC 61009-2-1
[Ui] rated insulation voltage
400 V AC 50 HZ
[Uimp] rated impulse withstand voltage
4 KV
contact position indicator
YES
control type
TOGGLE
local signalling
ON OFF FAULT TRIP
mounting mode
CLIP-ON
mounting support
DIN RAIL
comb busbar and distribution block compatibility
YES TOP OR BOTTOM
connection pitch
NO RENDITION
9 mm pitches
4
height
85 MM
width
36 MM
depth
73 MM
product weight
125 G
colour
WHITE
mechanical durability
20000 CYCLES
electrical durability
20000 CYCLES
locking options description
PADLOCKING DEVICE
connections - terminals
SINGLE TERMINAL TOP OR BOTTOM RIGID WIRES 1...16 MM MAX
wire stripping length
15 mm (top or bottom)
tightening torque
2 N.M TOP OR BOTTOM
earth-leakage protection
INTEGRATED
compatibility code
IDPN
