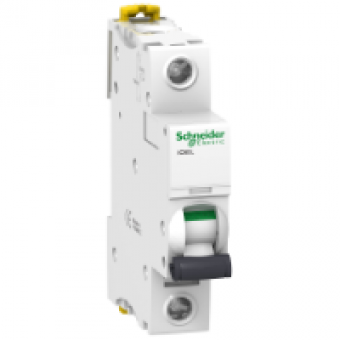

A9F95125 - iC60L - miniature circuit breaker - 1P - 25A - K curve, Schneider Electric
- Product Code: A9F95125
- Brand: Schneider Electric
- Availability: To be confirmed
- € 12.42 Ex Tax:
MAIN CHARACTERISTICS
device application
DISTRIBUTION
range
ACTI 9
range of product
IC60
product name
ACTI 9 IC60
product or component type
MINIATURE CIRCUIT-BREAKER
device short name
IC60L
poles description
1P
number of protected poles
1
[In] rated current
25 A
network type
AC
trip unit technology
THERMAL-MAGNETIC
curve code
K
breaking capacity code
L
breaking capacity
15000 A ICN CONFORMING TO ENIEC 60898-1 - 230 V AC 5060 HZ
utilisation category
CATEGORY A CONFORMING TO EN 60947-2
suitability for isolation
YES CONFORMING TO EN 60947-2
standards
EN 60947-2
COMPLEMETARY CHARACTERISTICS
network frequency
50 60 HZ
[Ue] rated operational voltage
12..60 V AC 5060 HZ
magnetic tripping limit
12 X IN + - 20 PT
[Ics] rated service breaking capacity
12.5 KA 50 X ICU CONFORMING TO EN 60947-2 - 220...240 V AC 5060 HZ
limitation class
3 CONFORMING TO EN 60898-1
[Ui] rated insulation voltage
500 V AC 5060 HZ CONFORMING TO EN 60947-2
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO EN 60947-2
contact position indicator
YES
control type
TOGGLE
local signalling
TRIP INDICATOR
mounting mode
FIXED
mounting support
DIN RAIL
comb busbar and distribution block compatibility
YES TOP OR BOTTOM
connection pitch
NO RENDITION
9 mm pitches
2
height
85 MM
width
18 MM
depth
78.5 MM
product weight
0.215 KG
colour
WHITE
mechanical durability
20000 CYCLES
electrical durability
10000 CYCLES
connections - terminals
SINGLE TERMINAL TOP OR BOTTOM RIGID WIRES 1...25 MM MAX
wire stripping length
14 MM TOP OR BOTTOM
tightening torque
2 N.M TOP OR BOTTOM
earth-leakage protection
WITHOUT
compatibility code
IC60
market segment
RESIDENTIAL
