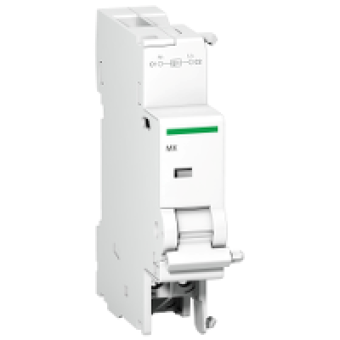

A9N26476 - MX Shunt trip 415Vac 110-130Vdc , Schneider Electric
- Product Code: A9N26476
- Brand: Schneider Electric
- Availability: To be confirmed
- € 24.01 Ex Tax:
MAIN CHARACTERISTICS
range of product
ACTI 9
range of product
C120
product or component type
SHUNT TRIP RELEASE
device short name
MX
[Uc] control circuit voltage
100...415 V AC 5060 HZ
9 mm pitches
2
product compatibility
C40
COMPLEMETARY CHARACTERISTICS
range compatibility
ACTI 9 ACTI 9 IDPN
local signalling
ACTION INDICATOR
mounting mode
FIXED
mounting support
35 MM SYMMETRICAL DIN RAIL
height
82.5 MM
width
18 MM
depth
68 MM
product weight
60 G
colour
WHITE
connections - terminals
SCREW CLAMP TERMINAL BOTTOM 2 CABLES 1.5 MM FLEXIBLE
wire stripping length
9 mm bottom
tightening torque
1 N.m bottom
market segment
RESIDENTIAL
