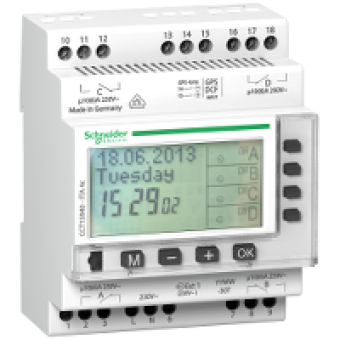

CCT15940 - Acti 9 - ITA - 4C yearly time switch - 24 hours + 7 days + year, Schneider Electric
- Product Code: CCT15940
- Brand: Schneider Electric
- Availability: To be confirmed
- € 246.27 Ex Tax:
MAIN CHARACTERISTICS
range of product
ACTI 9
range of product
ACTI 9
product name
ACTI 9 ITA
device short name
ITA
product or component type
YEARLY PROGRAMMABLE TIME SWT
device application
BUILDING
battery type
LITHIUM
number of channels
4
language
DANISH
colour tint
WHITE RAL 9003
COMPLEMETARY CHARACTERISTICS
power consumption in W
1.2...3.2 W
maximum switching current
10 A - 250 V AC PF = 1
[Ue] rated operational voltage
230 V AC 5060 HZ
cycle duration
24 HOURS + 7 DAYS + YEAR
maximum number of switchings
300
minimum interval duration
1 MN
accuracy
+/- 0.5 s/day 20 °C
number of inputs
2 input(s) impulse and maintained
display type
BACKLIT LCD
battery life
10 YR
backup time
10 YEARS TIME AND PROGRAM SAVING
mounting support
DIN RAIL
9 mm pitches
8
function available
PULSE PROGRAMMING
type of setting
ABSENCE FOR HOLIDAYS FUNCTION
connections - terminals
SCREW TERMINALS
width
71.5 MM
height
90 MM
depth
63 MM
function
PULSE PROGRAMMING
absence for holidays
YES
time changeover
AUTOMATIC
updated by
DCF77
compatibility code
ITA
market segment
SMALL COMMERCIAL
