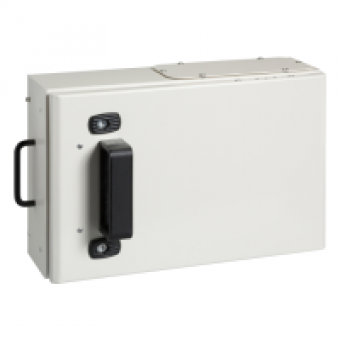

KSB400SE4 - Canalis - tap-off unit with isolator for NF fuse size 2 - 400A - 3L+N+PE, Schneider Electric
- Product Code: KSB400SE4
- Brand: Schneider Electric
- Availability: To be confirmed
- € 1,267.23 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
range compatibility
CANALIS KT
product or component type
TAP-OFF UNIT
busbar trunking compatibility
CANALIS KS BUSBAR TRUNKING WITH PLUG-IN OUTLETS
[Ie] rated operational current
400 A AT 35 C
protection type
FUSE ISOLATOR FOR AM BLADE TYPE FUSE SIZE 2 - 400 A - CONFORMING TO NF STANDARD
provided equipment
FUSE TO BE ORDERED SEPARATELY
mounting mode
PLUG-IN WITH FIXED POLARITY
tap-off unit polarity
3L+N+PE
COMPLEMETARY CHARACTERISTICS
function available
FUSE ISOLATOR
device application
MEDIUM POWER DISTRIBUTION
[Ue] rated operational voltage
230...690 V DEPENDING ON PROTECTIVE DEVICE
[Uimp] rated impulse withstand voltage
6.8 KV
[Ui] rated insulation voltage
500 V DEPENDING ON PROTECTIVE DEVICE
network frequency
50 60 HZ
electrical connection
COPPER CABLE LUG - ISO50 - CABLE 240 MM FLEXIBLE
door/cover opening side
RIGHT
tap-off unit disconnection mode
BY OPENING THE DOOR
standards
IEC 61439-1
colour
WHITE RAL 9001
width
600 MM
depth
316 MM
depth (door open)
855 MM
height
600 MM
product weight
29.2 KG
