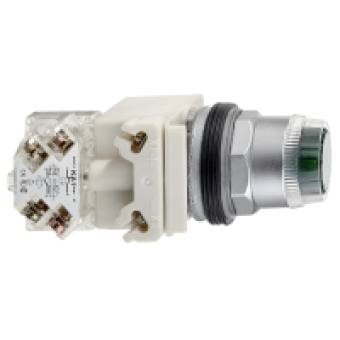

9001K1L38LGGH13 - PUSH BUTTON 600VAC 10A 30MM T-K, Schneider Electric
- Product Code: 9001K1L38LGGH13
- Brand: Schneider Electric
- Availability: To be confirmed
- € 90.77 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY 9001K
product or component type
ILLUMINATED PUSH BUTTON
device short name
9001K
type of operator
SPRING RETURN
operator profile
GREEN FLUSH UNMARKED
operator additional information
FULL GUARD IN PLASTIC
COMPLEMETARY CHARACTERISTICS
bezel material
CHROMIUM PLATED METAL
mounting diameter
30 MM
shape of signaling unit head
OCTAGONAL
light source
HIGH LUMINOSITY LED
light source
LED
bulb base
BA 9S
light block supply
DIRECT
[Us] rated supply voltage
120 V ACDC
contacts type and composition
1 CO
connections - terminals
SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MM CONFORMING TO IEC 60947-1
tightening torque
0.8 N.M CONFORMING TO IEC 60947-1
shape of screw head
CROSS SLOTTED
mechanical durability
5000000 CYCLES
operating position
ANY POSITION
[Ie] rated operational current
0.55 A AT 125 V DC-13 A600-Q
[Ui] rated insulation voltage
250 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Uimp] rated impulse withstand voltage
2.5 KV CONFORMING TO IEC 60947-1
contacts material
SILVER ALLOY CONTACTS
contact operation
STANDARD
positive opening
WITHOUT
short-circuit protection
10 A CARTRIDGE FUSE CONFORMING TO IEC 60947-5-1
[Ith] conventional free air thermal current
10 A
[Icm] rated short-circuit making capacity
<= 12 KA AT 600 V AC-15 7200 VA
rated breaking capacity
<= 1.2 KA AT 600 V AC-15 720 VA
product weight
0.166 KG
device presentation
COMPLETE PRODUCT
compatibility code
9001K
