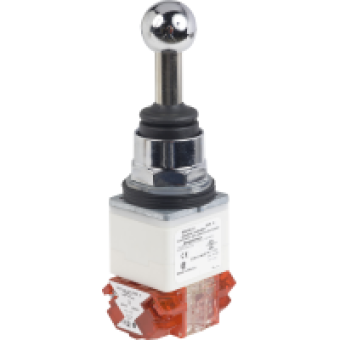

9001K31H8 - joystick controller - Ø 30 - 3 positions spring return - 2 NC, Schneider Electric
- Product Code: 9001K31H8
- Brand: Schneider Electric
- Availability: To be confirmed
- € 77.58 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY 9001K
product or component type
JOYSTICK CONTROLLER
device short name
9001K
sale per indivisible quantity
1
type of operator
SPRING RETURN TO CENTRE
operator profile
80 MM LONG OPERATING SHAFT
COMPLEMETARY CHARACTERISTICS
bezel material
CHROMIUM PLATED METAL
mounting diameter
30 MM
product weight
0.372 KG
operating position
VERTICAL
shape of signaling unit head
OCTAGONAL
operator position information
3 POSITIONS
contacts type and composition
2 NC
contact operation
SLOW-BREAK
contacts usage
STANDARD
positive opening
WITH CONFORMING TO IEC 60947-5-2
connections - terminals
SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MM CONFORMING TO IEC 60947-1
tightening torque
0.8 N.M CONFORMING TO IEC 60947-1
shape of screw head
CROSS SLOTTED HEAD
contacts material
SILVER ALLOY CONTACTS
short-circuit protection
10 A CARTRIDGE FUSE CONFORMING TO IEC 60947-5-1
[Ith] conventional free air thermal current
10 A
[Ui] rated insulation voltage
250 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Uimp] rated impulse withstand voltage
2.5 KV CONFORMING TO IEC 60947-1
[Ie] rated operational current
3 A AT 240 V AC-15 A600-Q600
[Icm] rated short-circuit making capacity
<= 12 KA AT 600 V AC-15 7200 VA
rated breaking capacity
<= 3 KA AT 240 V AC-15 720 VA
device presentation
COMPLETE PRODUCT
compatibility code
9001K
