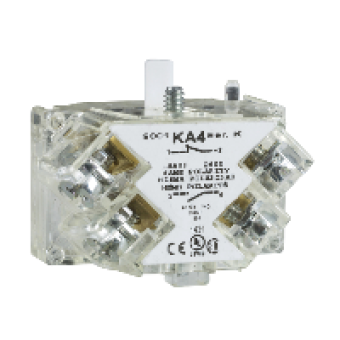

9001KA42 - 30MM CONTACT BLOCK 1N/O LOGIC REED, Schneider Electric
- Product Code: 9001KA42
- Brand: Schneider Electric
- Availability: To be confirmed
- € 7.70 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY 9001K
product or component type
CONTACT BLOCK W PROT TERMINALS
device short name
9001K
COMPLEMETARY CHARACTERISTICS
product weight
0.045 KG
contacts type and composition
1 NC
contact operation
LOGIC REED
contacts usage
HERMETICALLY SEALED CONTACTS
positive opening
WITH CONFORMING TO IEC 60947-5-2
connections - terminals
SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MM CONFORMING TO IEC 60947-1
tightening torque
0.8 N.M CONFORMING TO IEC 60947-1
shape of screw head
CROSS SLOTTED HEAD
contacts material
SILVER ALLOY CONTACTS
short-circuit protection
10 A CARTRIDGE FUSE CONFORMING TO IEC 60947-5-1
[Ith] conventional free air thermal current
10 A
[Ui] rated insulation voltage
250 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Uimp] rated impulse withstand voltage
2.5 KV CONFORMING TO IEC 60947-1
[Ie] rated operational current
3 A AT 240 V AC-15 A600-Q600
[Icm] rated short-circuit making capacity
<= 12 KA AT 600 V AC-15 7200 VA
rated breaking capacity
<= 3 KA AT 240 V AC-15 720 VA
compatibility code
9001K
