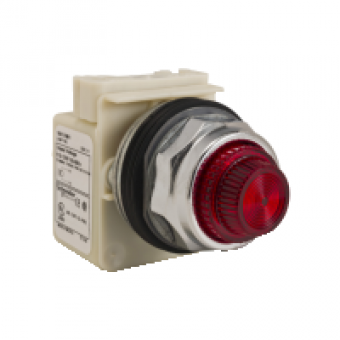

9001KP1R31 - 30mm Pilot Light 120v red, Schneider Electric
- Product Code: 9001KP1R31
- Brand: Schneider Electric
- Availability: To be confirmed
- € 54.39 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY 9001K
product or component type
PILOT LIGHT
device short name
K
COMPLEMETARY CHARACTERISTICS
bezel material
CHROMIUM PLATED METAL
mounting diameter
30 MM
lens type
FRESNEL PLASTIC
cap/operator or lens colour
RED
light source
INCANDESCENT
bulb base
BA 9S
light block supply
VIA TRANSFORMER F = 50 60 HZ
connections - terminals
SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MM CONFORMING TO IEC 60947-1
shape of screw head
ROUND HEAD
operating position
ANY POSITION
[Us] rated supply voltage
110...120 V AC
operating mode
NORMAL
device presentation
COMPLETE PRODUCT
