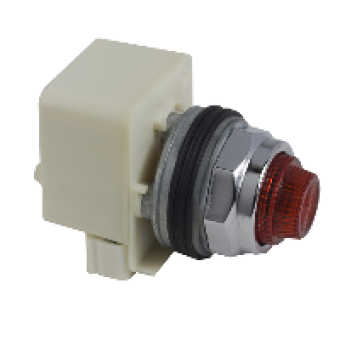

9001KP7LRR31 - 30mm Pilot Light 220-240v red LED, Schneider Electric
- Product Code: 9001KP7LRR31
- Brand: Schneider Electric
- Availability: To be confirmed
- € 52.18 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY 9001K
product or component type
PILOT LIGHT
device short name
9001K
COMPLEMETARY CHARACTERISTICS
bezel material
CHROMIUM PLATED METAL
mounting diameter
30 MM
shape of signaling unit head
ROUND
lens type
FRESNEL PLASTIC
cap/operator or lens colour
RED
light source
RED LED
bulb base
BA 9S
light block supply
VIA INTEGRAL TRANSFORMER F = 50 60 HZ SECONDARY VOLTAGE = 6 V
connections - terminals
SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MM CONFORMING TO IEC 60947-1
tightening torque
0.8 N.M CONFORMING TO IEC 60947-1
shape of screw head
CROSS SLOTTED
operating position
ANY POSITION
[Ui] rated insulation voltage
250 V DEGREE OF POLLUTION 2 CONFORMING TO IEC 60947-1
[Uimp] rated impulse withstand voltage
2.5 KV CONFORMING TO IEC 60947-1
short-circuit protection
10 A CARTRIDGE FUSE CONFORMING TO IEC 60947-5-1
[Ith] conventional free air thermal current
10 A
CAD overall width
54 MM
CAD overall height
70 MM
CAD overall depth
42 MM
product weight
0.21 KG
compatibility code
9001K
The Schneider Electric 9001KP7LRR31 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
