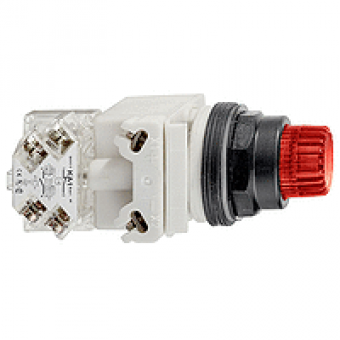

9001SK2L38LRR - PUSHBUTTON OPERATOR 30MM SK +OPTIONS, Schneider Electric
- Product Code: 9001SK2L38LRR
- Brand: Schneider Electric
- Availability: To be confirmed
- € 46.95 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY 9001SK
product or component type
ILLUMINATED PUSH BUTTON
device short name
9001SK
type of operator
SPRING RETURN
operator profile
RED PROJECTING UNMARKED
light block supply
DIRECT
COMPLEMETARY CHARACTERISTICS
bezel material
PLASTIC
mounting diameter
30 MM
shape of signaling unit head
OCTAGONAL
light source
RED LED
bulb base
BA 9S
[Us] rated supply voltage
120 V ACDC
contacts type and composition
WITHOUT CONTACT BLOCK
connections - terminals
SCREW CLAMP TERMINALS 1 X 0.2
tightening torque
0.8 N.M CONFORMING TO ENIEC 6
shape of screw head
CROSS SLOTTED
mechanical durability
5000000 CYCLES
operating position
ANY POSITION
[Ie] rated operational current
0.55 A AT 125 V DC-13 A600-Q
[Ui] rated insulation voltage
250 V DEGREE OF POLLUTION 3 CONFORMING TO ENIEC 60947-1
[Uimp] rated impulse withstand voltage
2.5 KV CONFORMING TO ENIEC 60
contact operation
STANDARD
short-circuit protection
10 A CARTRIDGE FUSE CONFORMING TO ENIEC 60947-5-1
[Ith] conventional free air thermal current
10 A
product weight
0.181 KG
compatibility code
9001SK
device presentation
BASIC ELEMENT
