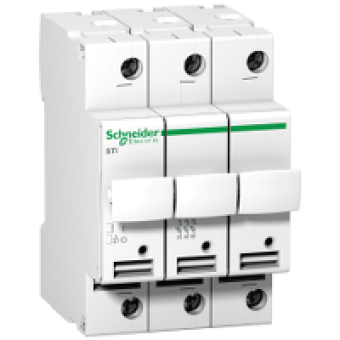

A9N15656 - Acti 9 - fuse-disconnector STI - 3 poles - 25 A - for fuse 10.3 x 38 mm, Schneider Electric
- Product Code: A9N15656
- Brand: Schneider Electric
- Availability: To be confirmed
- € 8.53 Ex Tax:
MAIN CHARACTERISTICS
range of product
STI
range
ACTI 9
product name
ACTI 9 STI
product or component type
FUSE-DISCONNECTOR
device short name
STI
poles description
3P
COMPLEMETARY CHARACTERISTICS
[In] rated current
2 A
fuse curve
AM
fuse size
10.3 X 38 MM
[Ue] rated operational voltage
500 V AC
[Ui] rated insulation voltage
500 V AC 5060 HZ
mounting mode
CLIP-ON
mounting support
DIN RAIL
9 mm pitches
6
height
81 MM
width
54 MM
depth
75 MM
colour
WHITE
connections - terminals
SCREW CLAMP TERMINALS 1 CABLES 0.75...10 MM RIGID
wire stripping length
12 MM
tightening torque
2 N.M
compatibility code
STI
