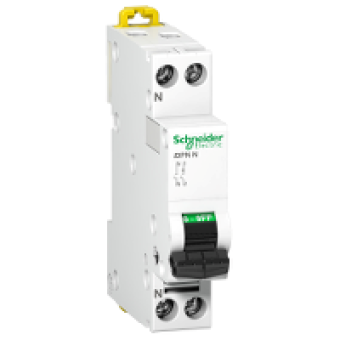

A9N17519 - iDPN - circuit breaker - 1P+N - 16A - B curve, Schneider Electric
- Product Code: A9N17519
- Brand: Schneider Electric
- Availability: To be confirmed
- € 7.36 Ex Tax:
MAIN CHARACTERISTICS
range of product
CLARIO
range
CLARIO
product name
IDPN
product or component type
MINIATURE CIRCUIT-BREAKER
device short name
IDPN N
device application
DISTRIBUTION
poles description
1P+N
number of protected poles
1
neutral position
LEFT
[In] rated current
16 A
network type
AC
trip unit technology
THERMAL-MAGNETIC
curve code
B
breaking capacity code
N
breaking capacity
ICN 6000 A AT 230 V AC 5060 HZ CONFORMING TO ENIEC 60898-1
suitability for isolation
YES
COMPLEMETARY CHARACTERISTICS
network frequency
50 60 HZ
[Ue] rated operational voltage
230 V AC 5060 HZ BETWEEN PHASE AND NEUTRAL
magnetic tripping limit
3...5 X IN
[Ics] rated service breaking capacity
6000 A 100 X ICN AT 230 V AC 50 60 HZ CONFORMING TO EN IEC 60898-1
limitation class
3 CONFORMING TO ENIEC 60898-1
[Ui] rated insulation voltage
400 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
4 KV CONFORMING TO IEC 60947-2
contact position indicator
YES
control type
TOGGLE
local signalling
ON OFF INDICATION
mounting mode
CLIP-ON
mounting support
DIN RAIL
comb busbar and distribution block compatibility
Clario
connection pitch
NO RENDITION
9 mm pitches
2
height
81 MM
width
18 MM
depth
78 MM
product weight
115 G
colour
WHITE
mechanical durability
20000 CYCLES
electrical durability
20000 CYCLES
locking options description
PADLOCKING DEVICE
connections - terminals
tunnel type terminals, downstream flexible wire(s) 0.33...10 mm² max
wire stripping length
13 MM
tightening torque
2 N.M
earth-leakage protection
SEPARATE BLOCK
compatibility code
IDPN
