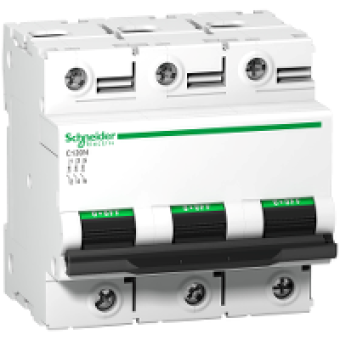

A9N18365 - C120N - circuit breaker - 3P - 80A - C curve, Schneider Electric
- Product Code: A9N18365
- Brand: Schneider Electric
- Availability: To be confirmed
- € 95.34 Ex Tax:
MAIN CHARACTERISTICS
range of product
C120
range
ACTI 9
product name
C120
product or component type
MINIATURE CIRCUIT-BREAKER
device short name
C120N
device application
DISTRIBUTION
poles description
3P
number of protected poles
3
[In] rated current
80 A AT 30 DC
network type
AC
trip unit technology
THERMAL-MAGNETIC
curve code
C
breaking capacity code
N
breaking capacity
10000 A ICN CONFORMING TO ENIEC 60898-1 - 230...400 V AC 5060 HZ
suitability for isolation
YES CONFORMING TO IEC 60947-2
COMPLEMETARY CHARACTERISTICS
network frequency
50 60 HZ
[Ue] rated operational voltage
<= 375 V DC
magnetic tripping limit
5..10 X IN
[Ics] rated service breaking capacity
7500 A AT 75 OF BREAKING CAP. CONFORMING TO ENIEC 60898-1 - 230...400 V AC 5060 HZ
limitation class
3 CONFORMING TO ENIEC 60947-2
[Ui] rated insulation voltage
500 V AC 5060 HZ CONFORMING TO ENIEC 60947-2
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO ENIEC 60947-2
contact position indicator
YES
control type
TOGGLE
local signalling
ON OFF INDICATION
mounting mode
CLIP-ON
mounting support
35 MM SYMMETRICAL DIN RAIL
comb busbar and distribution block compatibility
YES
connection pitch
NO RENDITION
9 mm pitches
9
height
81 MM
width
81 MM
depth
73 MM
product weight
0.615 KG
colour
WHITE
mechanical durability
20000 CYCLES
electrical durability
5000 CYCLES CONFORMING TO IEC 60947-2
wire stripping length
15 MM
tightening torque
3.5 N.M
earth-leakage protection
SEPARATE BLOCK
compatibility code
C120
market segment
RESIDENTIAL
