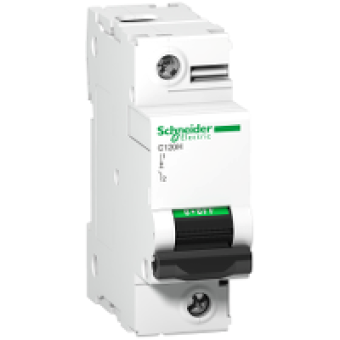

A9N18403 - C120H - circuit breaker - 1P - 100A - B curve, Schneider Electric
- Product Code: A9N18403
- Brand: Schneider Electric
- Availability: To be confirmed
- € 40.41 Ex Tax:
MAIN CHARACTERISTICS
range of product
C120
range
ACTI 9
product name
C120
product or component type
MINIATURE CIRCUIT-BREAKER
device short name
C120H
device application
DISTRIBUTION
poles description
1P
number of protected poles
2
[In] rated current
100 A AT 30 DC
network type
AC
trip unit technology
THERMAL-MAGNETIC
curve code
B
breaking capacity code
H
breaking capacity
30 KA ICU CONFORMING TO ENIEC 60947-2 - 130 V AC 5060 HZ
suitability for isolation
YES CONFORMING TO IEC 60947-2
COMPLEMETARY CHARACTERISTICS
network frequency
50 60 HZ
[Ue] rated operational voltage
380..415 V AC 5060 HZ
magnetic tripping limit
3..5 X IN
[Ics] rated service breaking capacity
15 KA AT 50 OF BREAKING CAP. CONFORMING TO ENIEC 60947-2 - 130 V AC 5060 HZ
limitation class
3 CONFORMING TO ENIEC 60947-2
[Ui] rated insulation voltage
500 V AC 5060 HZ CONFORMING TO ENIEC 60947-2
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO ENIEC 60947-2
contact position indicator
YES
control type
TOGGLE
local signalling
ON OFF INDICATION
mounting mode
CLIP-ON
mounting support
35 MM SYMMETRICAL DIN RAIL
comb busbar and distribution block compatibility
NO
connection pitch
NO RENDITION
9 mm pitches
3
height
81 MM
width
27 MM
depth
73 MM
product weight
0.205 KG
colour
WHITE
mechanical durability
20000 CYCLES
electrical durability
5000 CYCLES CONFORMING TO IEC 60947-2
wire stripping length
15 MM
tightening torque
3.5 N.M
earth-leakage protection
WITHOUT
compatibility code
C120
market segment
RESIDENTIAL
