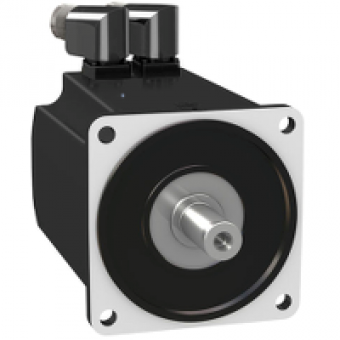

BMH1402P06F2A - servo motor BMH - 18.5 Nm - 4000 rpm - untapped shaft - with brake - IP54, Schneider Electric
- Product Code: BMH1402P06F2A
- Brand: Schneider Electric
- Availability: To be confirmed
- € 1,238.88 Ex Tax:
MAIN CHARACTERISTICS
product or component type
SERVO MOTOR
device short name
BMH
maximum mechanical speed
4000 RPM
continuous stall torque
18.5 N.M FOR LXM32.D72N4 24 A AT 400 V THREE PHASE
peak stall torque
50.3 N.M FOR LXM32.D72N4 24 A AT 400 V THREE PHASE
nominal output power
3500 W FOR LXM32.D72N4 24 A AT 400 V THREE PHASE
nominal torque
12.2 N.M FOR LXM32.D72N4 24 A AT 400 V THREE PHASE
nominal speed
3000 RPM FOR LXM32.D72N4 24 A AT 400 V THREE PHASE
product compatibility
LXM32.D72N4 AT 400...480 V THREE PHASE
shaft end
UNTAPPED
IP degree of protection
IP54 STANDARD
speed feedback resolution
32768 POINTS TURN
holding brake
WITH
mounting support
INTERNATIONAL STANDARD FLANGE
electrical connection
ROTATABLE RIGHT-ANGLED CONNS
COMPLEMETARY CHARACTERISTICS
range compatibility
LEXIUM 32
[Us] rated supply voltage
480 V
network number of phases
THREE PHASE
continuous stall current
16.83 A
continuous power
4.44 W
maximum current Irms
57.4 A FOR LXM32.D72N4
maximum permanent current
57.4 A
second shaft
WITHOUT SECOND SHAFT END
shaft diameter
24 MM
shaft length
50 MM
feedback type
SINGLE TURN SINCOS HIPERFACE
holding torque
18 N.M HOLDING BRAKE
motor flange size
140 MM
number of motor stacks
2
torque constant
1.1 N.MA AT 120 DC
back emf constant
70.7 VKRPM AT 120 DC
number of motor poles
10
rotor inertia
33.5 KG.CM
stator resistance
0.23 OHM AT 20 DC
stator inductance
3 MH AT 20 DC
stator electrical time constant
13 MS AT 20 DC
maximum radial force Fr
2240 N AT 1000 RPM
maximum axial force Fa
0.2 X FR
brake pull-in power
18 W
type of cooling
NATURAL CONVECTION
length
227 MM
centring collar diameter
130 MM
centring collar depth
3.5 MM
number of mounting holes
4
mounting holes diameter
11 MM
circle diameter of the mounting holes
165 MM
product weight
14.3 KG
sizing reference
BMH1402P
network number of phases
3
accuracy error [angular]
4.8
coefficient 1_1
-0.0015580971044942 N.MRPM
coefficient 1_2
-7.40962495854577E-09 N.MRPM
coefficient 1_3
9.68956725377379E-12 N.MRPM3
coefficient 1_4
-5.2956438523721E-15 N.MRPM4
coefficient 1_5
1.22533438374952E-18 N.MRPM5
coefficient 1_6
-1.0211119865247E-22 N.MRPM6
saturation coefficient 1
8.9283669812E-18
saturation coefficient 2
-0.008682328907048
saturation coefficient 3
-3.881898687E-19
coefficient 2_1
0.000210624396135302 N.MRPM
temperature copper hot
135 C
temperature magnet hot
100 C
temperature magnet rt
20 C
motor voltage drop coefficient
1
