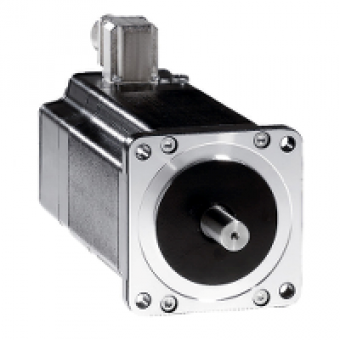

BRS397H360FBA - 3-phase stepper motor - 2.26 Nm - shaft Ø 12mm - L=68mm - with brake - term box, Schneider Electric
- Product Code: BRS397H360FBA
- Brand: Schneider Electric
- Availability: To be confirmed
- € 841.50 Ex Tax:
MAIN CHARACTERISTICS
range compatibility
LEXIUM SD3
product or component type
MOTION CONTROL MOTOR
device short name
BRS3
maximum mechanical speed
3000 RPM
motor type
3-PHASE STEPPER MOTOR
number of motor poles
6
supply voltage limits
34 V AC
mounting support
FLANGE
motor flange size
85 MM
length
157 MM
centring collar diameter
60 MM
COMPLEMETARY CHARACTERISTICS
centring collar depth
2 MM
number of mounting holes
4
mounting holes diameter
6.5 MM
circle diameter of the mounting holes
98.99 MM
electrical connection
TERMINAL BOX
holding brake
WITH
shaft end
SMOOTH SHAFT
second shaft
WITHOUT SECOND SHAFT END
shaft diameter
12 MM
shaft length
30 MM
nominal torque
2 N.M
holding torque
2.26 N.M
rotor inertia
1.1 KG.CM
resolution
1.8 0.9 0.72 0.36 0.18 0.09 0.072 0.036 STEP ANGLE
accuracy error
+ - 6 ARC MIN
maximum starting frequency
5 KHZ
[In] rated current
5.8 A
resistance
0.35 OHM WINDING
time constant
7 MS
maximum radial force Fr
100 N FIRST SHAFT END
maximum axial force Fa
175 N TENSILE FORCE
service life in hours
20000 H BEARING
angular acceleration
200000 RADS
product weight
2.1 KG
