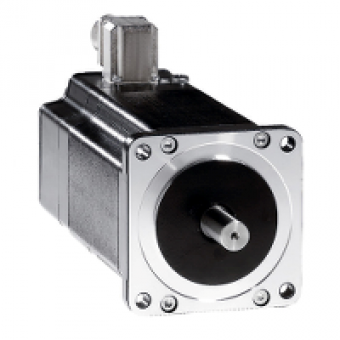

BRS39AW360ABA - 3-phase stepper motor - 4.52 Nm - shaft Ø 12mm - L=98 mm - w/o brake - term box, Schneider Electric
- Product Code: BRS39AW360ABA
- Brand: Schneider Electric
- Availability: To be confirmed
- € 315.86 Ex Tax:
MAIN CHARACTERISTICS
range compatibility
LEXIUM SD3
product or component type
MOTION CONTROL MOTOR
device short name
BRS3
maximum mechanical speed
3000 RPM
motor type
3-PHASE STEPPER MOTOR
number of motor poles
6
supply voltage limits
230 V AC
mounting support
FLANGE
motor flange size
85 MM
length
141 MM
centring collar diameter
60 MM
COMPLEMETARY CHARACTERISTICS
centring collar depth
2 MM
number of mounting holes
4
mounting holes diameter
6.5 MM
circle diameter of the mounting holes
98.99 MM
electrical connection
TERMINAL BOX
holding brake
WITHOUT
shaft end
UNTAPPED
second shaft
WITHOUT SECOND SHAFT END
shaft diameter
12 MM
shaft length
30 MM
nominal torque
4 N.M
peak stall torque
3.82 N.M
continuous stall torque
3.82 N.M
holding torque
4.52 N.M
rotor inertia
2.2 KG.CM
resolution
1.8 0.9 0.72 0.36 0.18 0.09 0.072 0.036 STEP ANGLE
accuracy error
+ - 6 ARC MIN
maximum starting frequency
5.3 KHZ
[In] rated current
2 A
resistance
5.8 OHM WINDING
time constant
9 MS
maximum radial force Fr
100 N FIRST SHAFT END
maximum axial force Fa
175 N TENSILE FORCE
service life in hours
20000 H BEARING
angular acceleration
200000 RADS
product weight
3.2 KG
sizing reference
BRS39A
supply voltage description
SINGLE PHASE 115 V AC
coefficient M0
0.00038 N.MRPM
coefficient M0 max
0.00038 N.MRPM
voltage 1
115 V
voltage 1 speed 1
623.268857857552 RPM
voltage 1 speed 1 max
623.268857857552 RPM
coefficient 1_0
-218.6513 N.M
coefficient 1_1
225.1427 N.MRPM
coefficient 1_2
-74.6639 N.MRPM
coefficient 1_3
8.0714 N.MRPM3
voltage 2
230 V
voltage 2 speed 2
623.268857857552 RPM
voltage 2 speed 2 max
623.268857857552 RPM
coefficient 2_0
-218.6513 N.M
coefficient 2_1
225.1427 N.MRPM
coefficient 2_2
-74.6639 N.MRPM
coefficient 2_3
8.0714 N.MRPM3
curve type
SEMILOG
accuracy error [angular]
0.1
