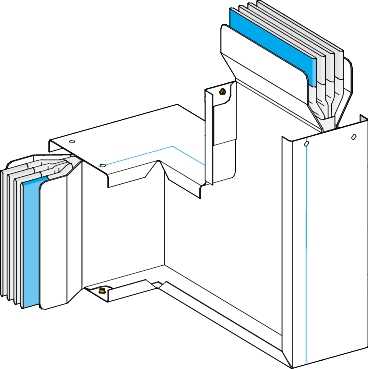

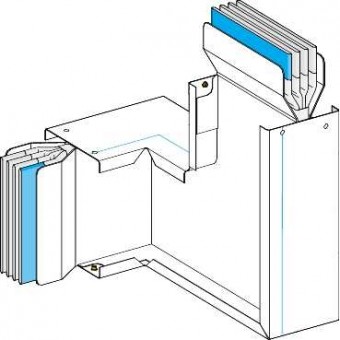

KTA0800CP34 - Canalis - Al edgewise and flat N4 zed unit - 800A - 3L+PE, Schneider Electric
- Product Code: KTA0800CP34
- Brand: Schneider Electric
- Availability: To be confirmed
- € 578.99 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
product name
KT
product or component type
MULTIPLE ELBOW
busbar description
STANDARD
device short name
KTA
device application
CHANGE DIRECTION
material
ALUMINIUM
[Ie] rated operational current
800 A AT 35 DC
polarity
3L + PE
direction change type
direction 2 : edgewise to upward
operating angle
90
earth conductor
STANDARD EARTH
short-circuit level
STANDARD VERSION
provided equipment
TRUNKING UNIT
COMPLEMETARY CHARACTERISTICS
housing material
POLYESTER FILM
contacts material
COPPER
[Ue] rated operational voltage
1000 V
network frequency
50 60 HZ
[Ui] rated insulation voltage
1000 V
[Icw] rated short-time withstand current
31 KA
[Ipk] rated peak withstand current
64 KA
radiated magnetic field
0.4 T
thermal stress limit
961 A.S
THDI
0...15 %, maximum load current: 800 A
voltage drop
with cos Æ=1, 0.0083 V at 50 Hz with 1A for 100 m long
linear resistance
L : R1 35 °C= 0.096 mΩ/m at Inc and 50 Hz
neutral position
LEFT
standards
IEC 61439-1
dimension type
MADE TO MEASURE
width
140 MM
height
direction 2 : 195...574 mm
colour
WHITE RAL 9001
length
direction 1 : 300 mm
linear load
12 KGM
