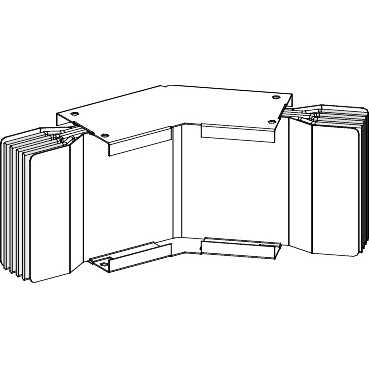

KTA0800LP7C2 - Canalis - Al flat elbow - 800A - 3L+N+PER - N2 - 91° to 179° tailored angle, Schneider Electric
- Product Code: KTA0800LP7C2
- Brand: Schneider Electric
- Availability: To be confirmed
- € 505.62 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
product name
KT
product or component type
ELBOW
busbar description
STANDARD
device short name
KTA
device application
CHANGE DIRECTION
material
ALUMINIUM
[Ie] rated operational current
800 A AT 35 DC
polarity
3L+N+PE
direction change type
direction 1 : flat to right
operating angle
91...179
earth conductor
REINFORCED
short-circuit level
REINFORCED VERSION
provided equipment
TRUNKING UNIT
COMPLEMETARY CHARACTERISTICS
housing material
POLYESTER FILM
contacts material
COPPER
[Ue] rated operational voltage
1000 V
network frequency
50 60 HZ
[Ui] rated insulation voltage
1000 V
[Icw] rated short-time withstand current
35 KA
[Ipk] rated peak withstand current
73 KA
radiated magnetic field
0.4 T
thermal stress limit
1225 A.S
THDI
0...15 %, maximum load current: 800 A
voltage drop
with cos Æ=1, 0.0083 V at 50 Hz with 1A for 100 m long
linear resistance
L : R1 35 °C= 0.096 mΩ/m at Inc and 50 Hz
neutral position
LEFT
standards
IEC 61439-1
dimension type
FIX
width
140 MM
height
74 mm
length
direction 1 : 300 mm
colour
WHITE RAL 9001
linear load
15 KGM
