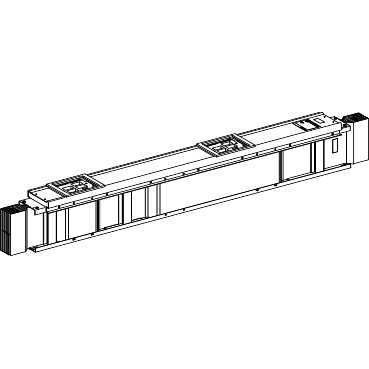

KTA1000EH520 - Canalis - Al length KH plug-in tap-off unit - 1000A - 3L+N+PER - 2m standard, Schneider Electric
- Product Code: KTA1000EH520
- Brand: Schneider Electric
- Availability: To be confirmed
- € 1,487.48 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
product name
KT
product or component type
BUSBAR TRUNKING
busbar description
DISTRIBUTION LENGTH
device short name
KTA
tap-off unit compatibility
plug-in tap-off unit from Canalis KH
device application
HIGH POWER DISTRIBUTION
material
ALUMINIUM
[Ie] rated operational current
1000 A AT 35 DC
polarity
3L+N+PE
number of tap-off outlets
2
nominal output current
100...630 A
earth conductor
REINFORCED
short-circuit level
STANDARD VERSION
length
2000 MM
provided equipment
TRUNKING UNIT
COMPLEMETARY CHARACTERISTICS
housing material
POLYESTER FILM
contacts material
COPPER
[Ue] rated operational voltage
1000 V
network frequency
50 60 HZ
[Ui] rated insulation voltage
1000 V
[Icw] rated short-time withstand current
50 KA
[Ipk] rated peak withstand current
110 KA
electrical connection
SLIDING CONTACT
radiated magnetic field
0.5 T
thermal stress limit
2500 A.S
THDI
0...15 %, maximum load current: 1000 A
voltage drop
with cos Æ=1, 0.006 V at 50 Hz with 1A for 100 m long
linear resistance
L : R1 35 °C= 0.069 mΩ/m at Inc and 50 Hz
mounting mode
BY HOOK
mounting support
PENDANT
installation direction
HORIZONTAL
neutral position
RIGHT
tap-off unit interval
800 MM
standards
IEC 61439-1
dimension type
FIX
width
140 MM
height
104 MM
colour
RAL 9001 : white
product weight
32 KG
linear load
16 KGM
