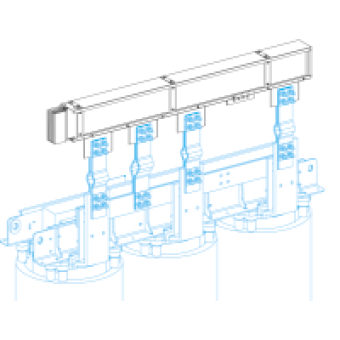

KTA2500EL31 - Canalis - Al feed unit N1 dry transformer - 2500A - 3L+PE - tailored, Schneider Electric
- Product Code: KTA2500EL31
- Brand: Schneider Electric
- Availability: To be confirmed
- € 1,713.71 Ex Tax:
MAIN CHARACTERISTICS
range
CANALIS
range of product
CANALIS
product name
KT
product or component type
SIDE FEEDER TRUNKING
device short name
KTA
device application
FEEDER LENGTH
supply
DRY TYPE TRANSFORMER
material
ALUMINIUM
[Ie] rated operational current
2500 A at 35 °C
neutral position
RIGHT
earth conductor
STANDARD EARTH
short-circuit level
STANDARD VERSION
provided equipment
TRUNKING UNIT
COMPLEMETARY CHARACTERISTICS
housing material
POLYESTER FILM
contacts material
COPPER
[Ue] rated operational voltage
1000 V
network frequency
50 60 HZ
[Ui] rated insulation voltage
1000 V
[Icw] rated short-time withstand current
113 KA
[Ipk] rated peak withstand current
248 KA
radiated magnetic field
1.6 T
thermal stress limit
6400 A.S
THDI
0...15 %, maximum load current: 2500 A
voltage drop
with cos Æ=1, 0.0024 V at 50 Hz with 1A for 100 m long
linear resistance
L : R1 35 °C= 0.028 mΩ/m at Inc and 50 Hz
mounting mode
BY SCREWS
mounting support
PLATE
polarity
3L + PE
number of tap-off outlets
0
standards
IEC 61439-1
dimension type
MADE TO MEASURE
connection pitch
470...700 MM
bar width
200 MM
depth
140 MM
height
244 mm
length
1900 mm
colour
RAL 9001 : white
linear load
25 KGM
