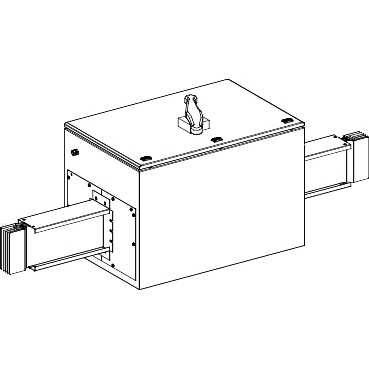

KTA2500SL41 - Canalis - Al trunking run isolator with Compact INV2500 - 2500A - 3L+N+PE, Schneider Electric
- Product Code: KTA2500SL41
- Brand: Schneider Electric
- Availability: To be confirmed
- € 10,332.16 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
product name
KT
product or component type
COUPLING SWITCH
device short name
KTA
device application
SAFETY
material
ALUMINIUM
[Ie] rated operational current
2500 A at 35 °C
switch-disconnector name
INTERPACT INV2500
polarity
3L+N+PE
earth conductor
STANDARD EARTH
short-circuit level
STANDARD VERSION
length
2000 MM
provided equipment
TRUNKING UNIT
COMPLEMETARY CHARACTERISTICS
housing material
POLYESTER FILM
contacts material
COPPER
[Ue] rated operational voltage
690 V
network frequency
50 60 HZ
[Ui] rated insulation voltage
1000 V
[Icw] rated short-time withstand current
80 kA
[Ipk] rated peak withstand current
176 KA
radiated magnetic field
1.6 T
thermal stress limit
6400 A.S
THDI
0...15 %, maximum load current: 2500 A
voltage drop
with cos Æ=1, 0.0024 V at 50 Hz with 1A for 100 m long
linear resistance
L : R1 35 °C= 0.028 mΩ/m at Inc and 50 Hz
neutral position
RIGHT
control type
ROTARY HANDLE
standards
IEC 61439-1
dimension type
FIX
width
140 MM
height
244 MM
enclosure nominal dimensions
H: 608 mm W: 600 mm D: 900 mm
colour
RAL 9001 : white
linear load
30 KGM
