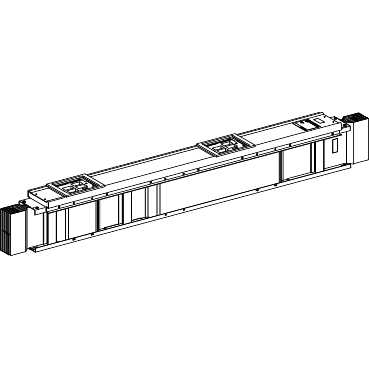

KTA3200EH620 - Canalis - Al length KH plug-in tap-off unit - 3200A - 3L+N+PE - 2m standard, Schneider Electric
- Product Code: KTA3200EH620
- Brand: Schneider Electric
- Availability: To be confirmed
- € 2,406.00 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
product name
KT
product or component type
BUSBAR TRUNKING
busbar description
DISTRIBUTION LENGTH
device short name
KTA
tap-off unit compatibility
plug-in tap-off unit from Canalis KH
device application
HIGH POWER DISTRIBUTION
material
ALUMINIUM
[Ie] rated operational current
3200 A at 35 °C
polarity
3L+N+PE
number of tap-off outlets
2
nominal output current
100...630 A
earth conductor
STANDARD EARTH
short-circuit level
REINFORCED VERSION
length
2000 MM
provided equipment
TRUNKING UNIT
COMPLEMETARY CHARACTERISTICS
housing material
POLYESTER FILM
contacts material
COPPER
[Ue] rated operational voltage
1000 V
network frequency
50 60 HZ
[Ui] rated insulation voltage
1000 V
[Icw] rated short-time withstand current
113 KA
[Ipk] rated peak withstand current
248 KA
electrical connection
SLIDING CONTACT
radiated magnetic field
2.1 T
thermal stress limit
12769 A.S
THDI
0...15 %, maximum load current: 3200 A
voltage drop
with cos Æ=1, 0.0018 V at 50 Hz with 1A for 100 m long
linear resistance
L : R1 35 °C= 0.021 mΩ/m at Inc and 50 Hz
mounting mode
BY HOOK
mounting support
PENDANT
installation direction
HORIZONTAL
neutral position
RIGHT
tap-off unit interval
800 MM
standards
IEC 61439-1
dimension type
FIX
width
140 MM
height
324 MM
colour
RAL 9001 : white
product weight
92 KG
linear load
46 KGM
