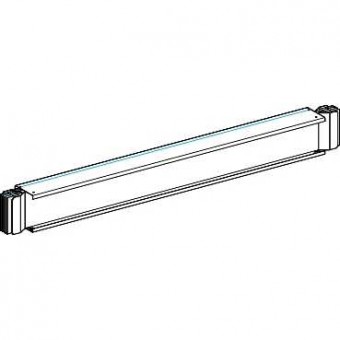

KTA3200ET320 - Canalis - Al straight feeder length - 3200A - 3L+PE - 2m standard, Schneider Electric
- Product Code: KTA3200ET320
- Brand: Schneider Electric
- Availability: To be confirmed
- € 1,418.22 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
product name
KT
product or component type
BUSBAR TRUNKING
busbar description
TRANSPORT LENGTH
device short name
KTA
device application
FEEDER LENGTH
material
ALUMINIUM
[Ie] rated operational current
3200 A at 35 °C
polarity
3L + PE
number of tap-off outlets
0
earth conductor
STANDARD EARTH
short-circuit level
STANDARD VERSION
length
2000 MM
provided equipment
TRUNKING UNIT
COMPLEMETARY CHARACTERISTICS
housing material
POLYESTER FILM
contacts material
COPPER
[Ue] rated operational voltage
1000 V
network frequency
50 60 HZ
[Ui] rated insulation voltage
1000 V
[Icw] rated short-time withstand current
86 KA
[Ipk] rated peak withstand current
189 KA
radiated magnetic field
2.1 T
thermal stress limit
7396 A.S
THDI
0...15 %, maximum load current: 3200 A
voltage drop
with cos Æ=1, 0.0018 V at 50 Hz with 1A for 100 m long
linear resistance
L : R1 35 °C= 0.021 mΩ/m at Inc and 50 Hz
mounting mode
BY HOOK
mounting support
PENDANT
installation direction
HORIZONTAL
neutral position
RIGHT
standards
IEC 61439-1
dimension type
FIX
width
140 MM
height
324 MM
product weight
62 KG
colour
RAL 9001 : white
