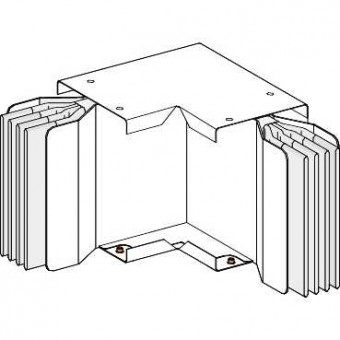

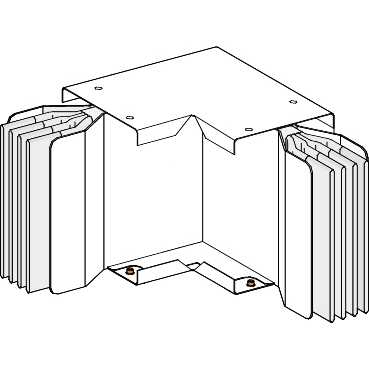

KTA3200LP7B1 - Canalis - Al flat elbow - 3200A - 3L+N+PER - N1 - 301 to 799mm tailored, Schneider Electric
- Product Code: KTA3200LP7B1
- Brand: Schneider Electric
- Availability: To be confirmed
- € 1,891.95 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
product name
KT
product or component type
ELBOW
busbar description
STANDARD
device short name
KTA
device application
CHANGE DIRECTION
material
ALUMINIUM
[Ie] rated operational current
3200 A at 35 °C
polarity
3L+N+PE
direction change type
direction 1 : flat to right
operating angle
90
earth conductor
REINFORCED
short-circuit level
REINFORCED VERSION
provided equipment
TRUNKING UNIT
COMPLEMETARY CHARACTERISTICS
housing material
POLYESTER FILM
contacts material
COPPER
[Ue] rated operational voltage
1000 V
network frequency
50 60 HZ
[Ui] rated insulation voltage
1000 V
[Icw] rated short-time withstand current
113 KA
[Ipk] rated peak withstand current
248 KA
radiated magnetic field
2.1 T
thermal stress limit
12769 A.S
THDI
0...15 %, maximum load current: 3200 A
voltage drop
with cos Æ=1, 0.0018 V at 50 Hz with 1A for 100 m long
linear resistance
L : R1 35 °C= 0.021 mΩ/m at Inc and 50 Hz
neutral position
RIGHT
standards
IEC 61439-1
dimension type
MADE TO MEASURE SHORT BRANCH
width
140 MM
height
324 mm
length
direction 1 : 300 mm
colour
WHITE RAL 9001
linear load
46 KGM
