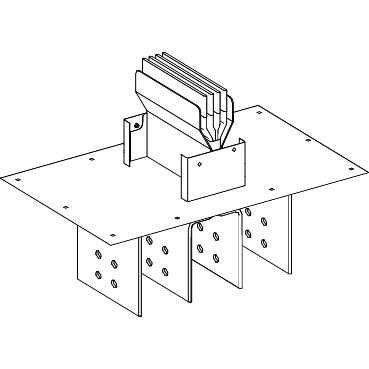

KTC1000ER71 - Canalis - Cu feed unit N1 oil trans + switchboard - 1000A - 3L+N+PER - standard, Schneider Electric
- Product Code: KTC1000ER71
- Brand: Schneider Electric
- Availability: To be confirmed
- € 605.30 Ex Tax:
MAIN CHARACTERISTICS
range
CANALIS
range of product
CANALIS
product name
KT
product or component type
STRAIGHT FEEDER TRUNKING
device short name
KTC
device application
FEEDER LENGTH
supply
OIL IMMERSED TRANSFORMER
material
COPPER
[Ie] rated operational current
1000 A AT 35 DC
neutral position
RIGHT
earth conductor
REINFORCED
short-circuit level
REINFORCED VERSION
provided equipment
TRUNKING UNIT
COMPLEMETARY CHARACTERISTICS
housing material
POLYESTER FILM
contacts material
COPPER
[Ue] rated operational voltage
1000 V
network frequency
50 60 HZ
[Ui] rated insulation voltage
1000 V
[Icw] rated short-time withstand current
65 KA
[Ipk] rated peak withstand current
143 KA
radiated magnetic field
0.4 T
thermal stress limit
4225 A.S
THDI
0...15 %, maximum load current: 1000 A
voltage drop
with cos Æ=1, 0.0043 V at 50 Hz with 1A for 100 m long
linear resistance
L - N : X0 20 °C= 0.087 mΩ/m symmetrical components method
mounting mode
BY SCREWS
mounting support
PLATE
polarity
3L+N+PE
number of tap-off outlets
0
standards
IEC 61439-1
dimension type
FIX
connection pitch
115 MM
width
545 MM
depth
230 MM
height
direction 1 : 235 mm
colour
RAL 9001 : white
linear load
25 KGM
