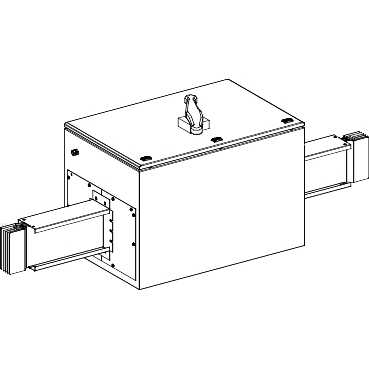

KTC1000SL31 - Canalis - Cu trunking run isolator with Compact NS1000NA - 1000A - 3L+PE, Schneider Electric
- Product Code: KTC1000SL31
- Brand: Schneider Electric
- Availability: To be confirmed
- € 5,891.67 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
product name
KT
product or component type
COUPLING SWITCH
device short name
KTC
device application
SAFETY
material
COPPER
[Ie] rated operational current
1000 A AT 35 DC
switch-disconnector name
COMPACT NS1000 NA
polarity
3L + PE
earth conductor
STANDARD EARTH
short-circuit level
STANDARD VERSION
length
2000 MM
provided equipment
TRUNKING UNIT
COMPLEMETARY CHARACTERISTICS
housing material
POLYESTER FILM
contacts material
COPPER
[Ue] rated operational voltage
690 V
network frequency
50 60 HZ
[Ui] rated insulation voltage
1000 V
[Icw] rated short-time withstand current
50 KA
[Ipk] rated peak withstand current
110 KA
radiated magnetic field
0.4 T
thermal stress limit
2500 A.S
THDI
0...15 %, maximum load current: 1000 A
voltage drop
with cos Æ=1, 0.0043 V at 50 Hz with 1A for 100 m long
linear resistance
L : R1 35 °C= 0.049 mΩ/m at Inc and 50 Hz
neutral position
RIGHT
control type
ROTARY HANDLE
standards
IEC 61439-1
dimension type
FIX
width
140 MM
height
74 MM
enclosure nominal dimensions
H: 608 mm W: 600 mm D: 900 mm
colour
RAL 9001 : white
linear load
19 KGM
