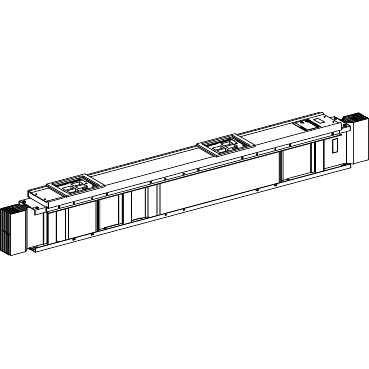

KTC2000EH320 - Canalis - Cu length KH plug-in tap-off unit - 2000A - 3L+PE - 2m standard, Schneider Electric
- Product Code: KTC2000EH320
- Brand: Schneider Electric
- Availability: To be confirmed
- € 3,420.87 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
product name
KT
product or component type
BUSBAR TRUNKING
busbar description
DISTRIBUTION LENGTH
device short name
KTC
tap-off unit compatibility
plug-in tap-off unit from Canalis KH
device application
HIGH POWER DISTRIBUTION
material
COPPER
[Ie] rated operational current
2000 A at 35 °C
polarity
3L + PE
number of tap-off outlets
2
nominal output current
100...630 A
earth conductor
STANDARD EARTH
short-circuit level
STANDARD VERSION
length
2000 MM
provided equipment
TRUNKING UNIT
COMPLEMETARY CHARACTERISTICS
housing material
POLYESTER FILM
contacts material
COPPER
[Ue] rated operational voltage
1000 V
network frequency
50 60 HZ
[Ui] rated insulation voltage
1000 V
[Icw] rated short-time withstand current
110 KA
[Ipk] rated peak withstand current
242 KA
electrical connection
SLIDING CONTACT
radiated magnetic field
0.9 T
thermal stress limit
12100 A.S
THDI
15...33 %, maximum load current: 1600 A
voltage drop
with cos Æ=1, 0.0019 V at 50 Hz with 1A for 100 m long
linear resistance
L : X1 35 °C= 0.013 mΩ/m at Inc and 50 Hz
mounting mode
BY HOOK
mounting support
PENDANT
installation direction
HORIZONTAL
neutral position
RIGHT
tap-off unit interval
800 MM
standards
IEC 61439-1
dimension type
FIX
width
140 MM
height
164 MM
colour
RAL 9001 : white
product weight
72 KG
linear load
36 KGM
