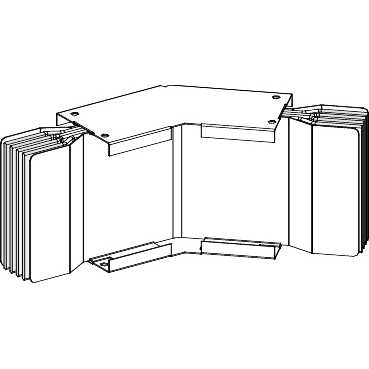

KTC2000LP3C1 - Canalis - Cu flat elbow - 2000A - 3L+PE - N1 - 91° to 179° tailored angle, Schneider Electric
- Product Code: KTC2000LP3C1
- Brand: Schneider Electric
- Availability: To be confirmed
- € 940.02 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
product name
KT
product or component type
ELBOW
busbar description
STANDARD
device short name
KTC
device application
CHANGE DIRECTION
material
COPPER
[Ie] rated operational current
2000 A at 35 °C
polarity
3L + PE
direction change type
direction 1 : flat to right
operating angle
91...179
earth conductor
STANDARD EARTH
short-circuit level
STANDARD VERSION
provided equipment
TRUNKING UNIT
COMPLEMETARY CHARACTERISTICS
housing material
POLYESTER FILM
contacts material
COPPER
[Ue] rated operational voltage
1000 V
network frequency
50 60 HZ
[Ui] rated insulation voltage
1000 V
[Icw] rated short-time withstand current
110 KA
[Ipk] rated peak withstand current
242 KA
radiated magnetic field
0.9 T
thermal stress limit
4900 A.S
THDI
15...33 %, maximum load current: 1600 A
voltage drop
with cos Æ=1, 0.0019 V at 50 Hz with 1A for 100 m long
linear resistance
L : X1 35 °C= 0.013 mΩ/m at Inc and 50 Hz
neutral position
RIGHT
standards
IEC 61439-1
dimension type
FIX
width
140 MM
height
164 MM
length
direction 1 : 300 mm
colour
WHITE RAL 9001
linear load
36 KGM
